HP Envy Right Hinge Separating Issues

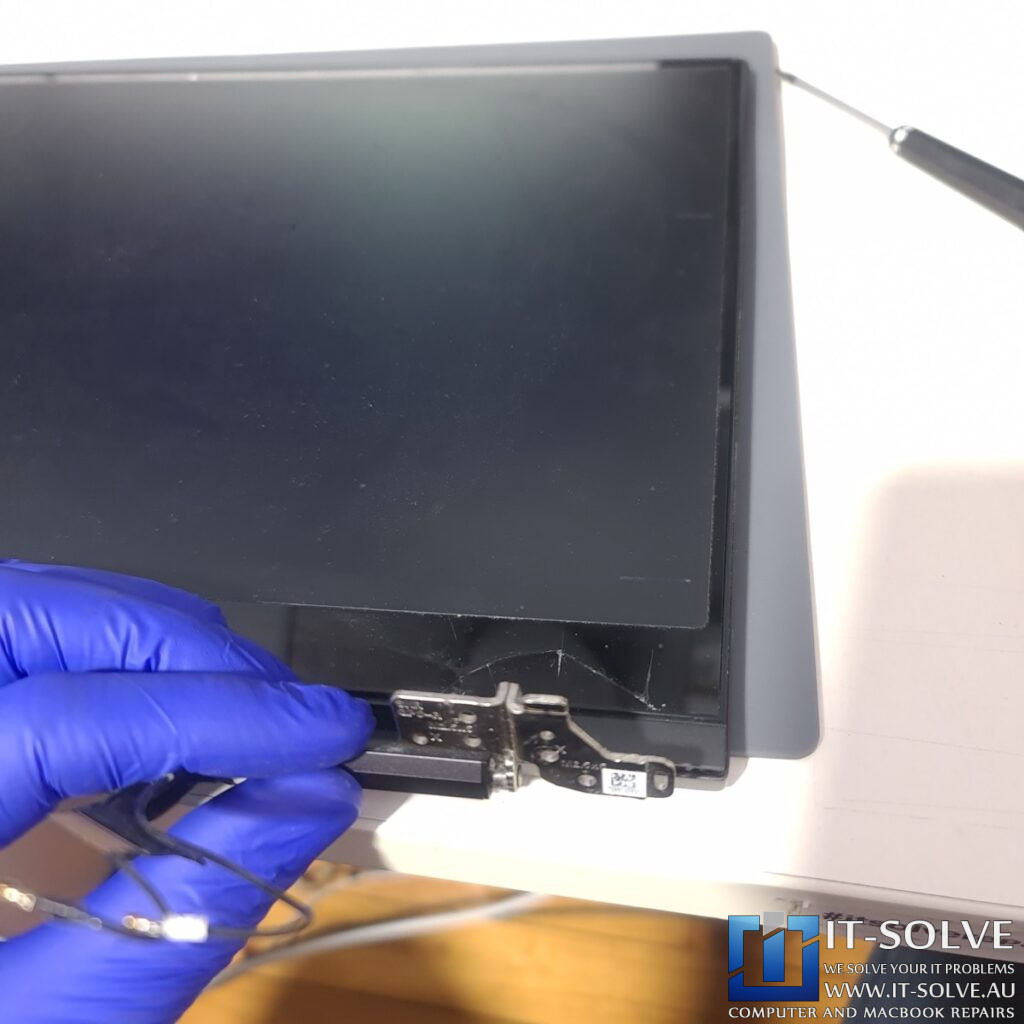

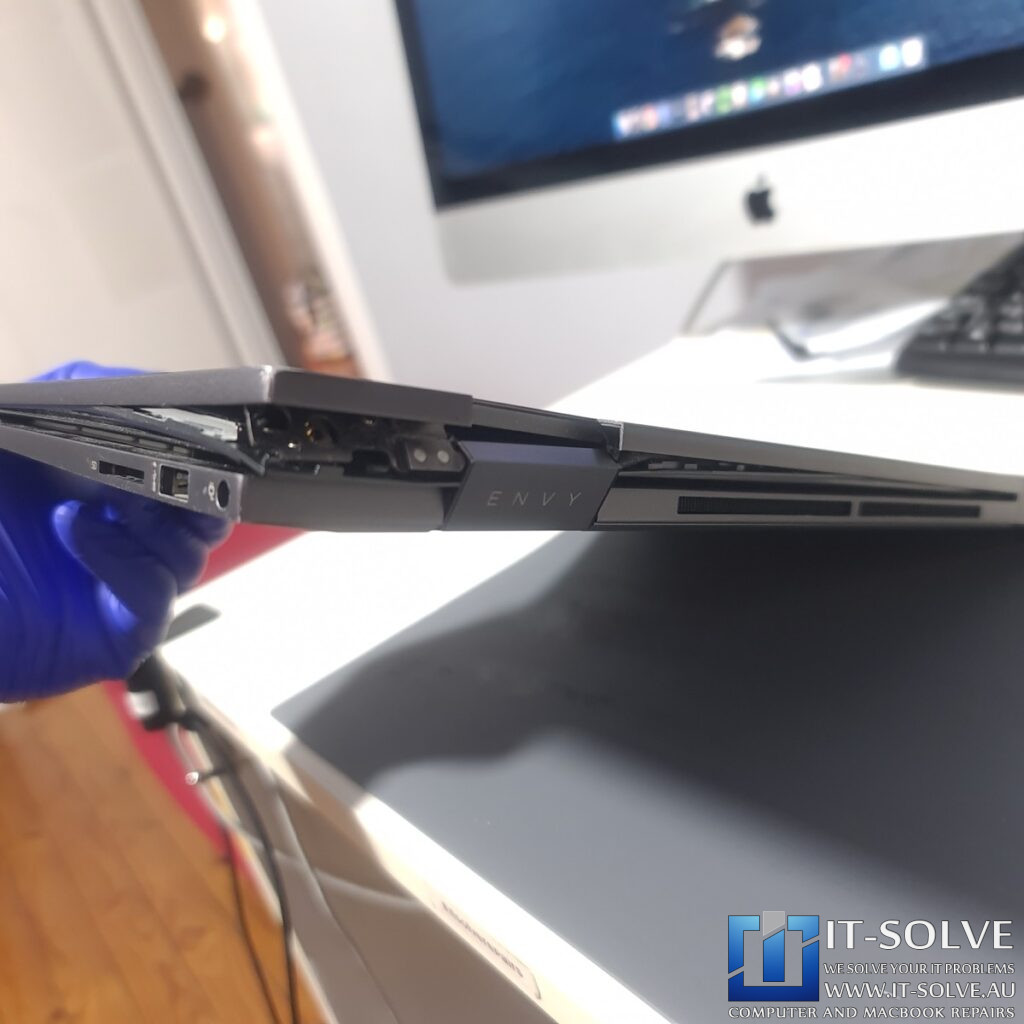

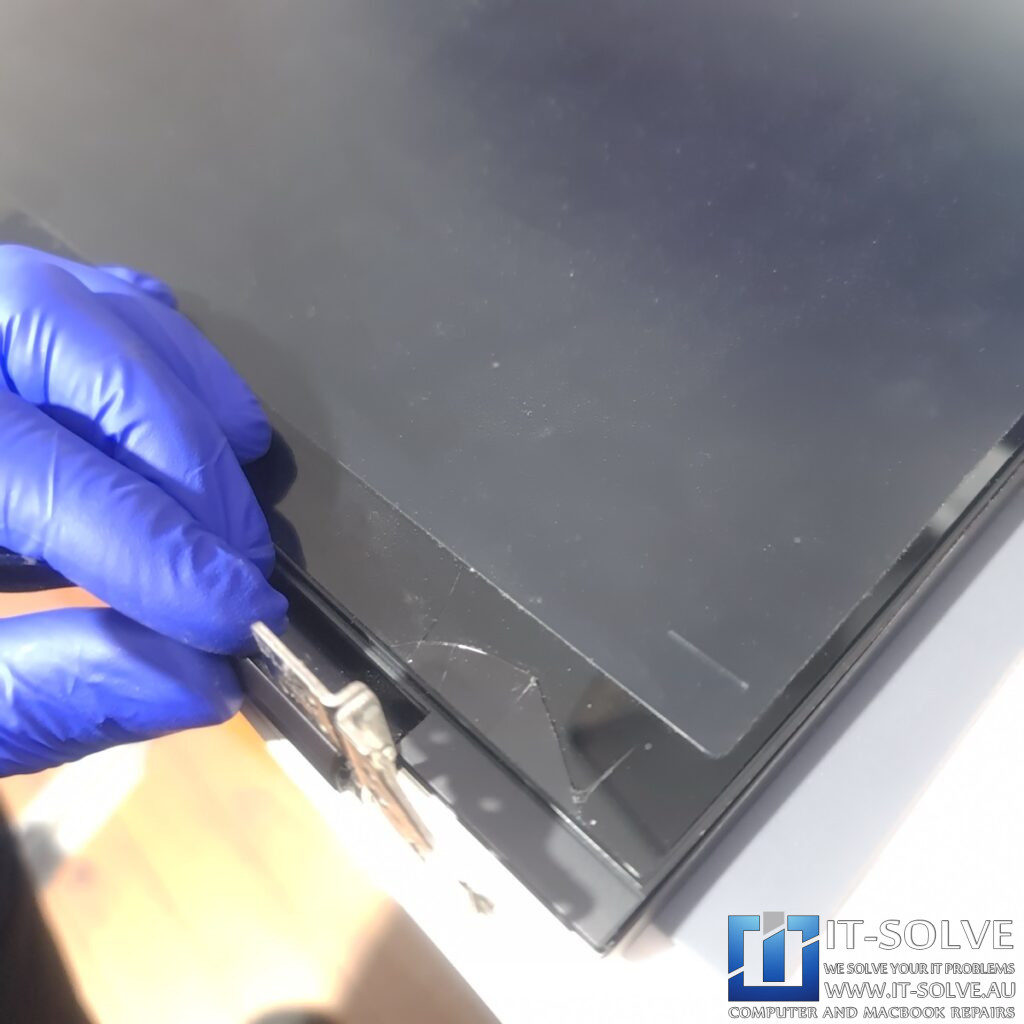

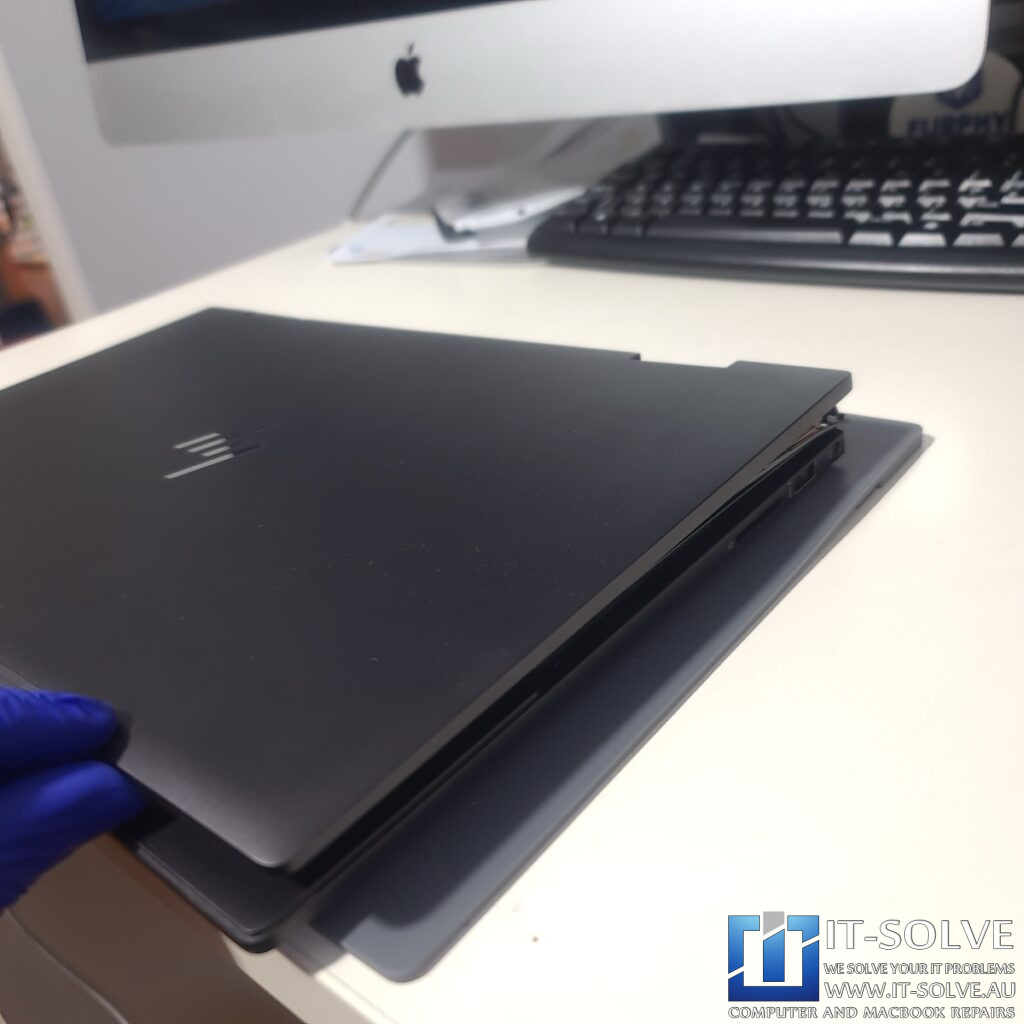

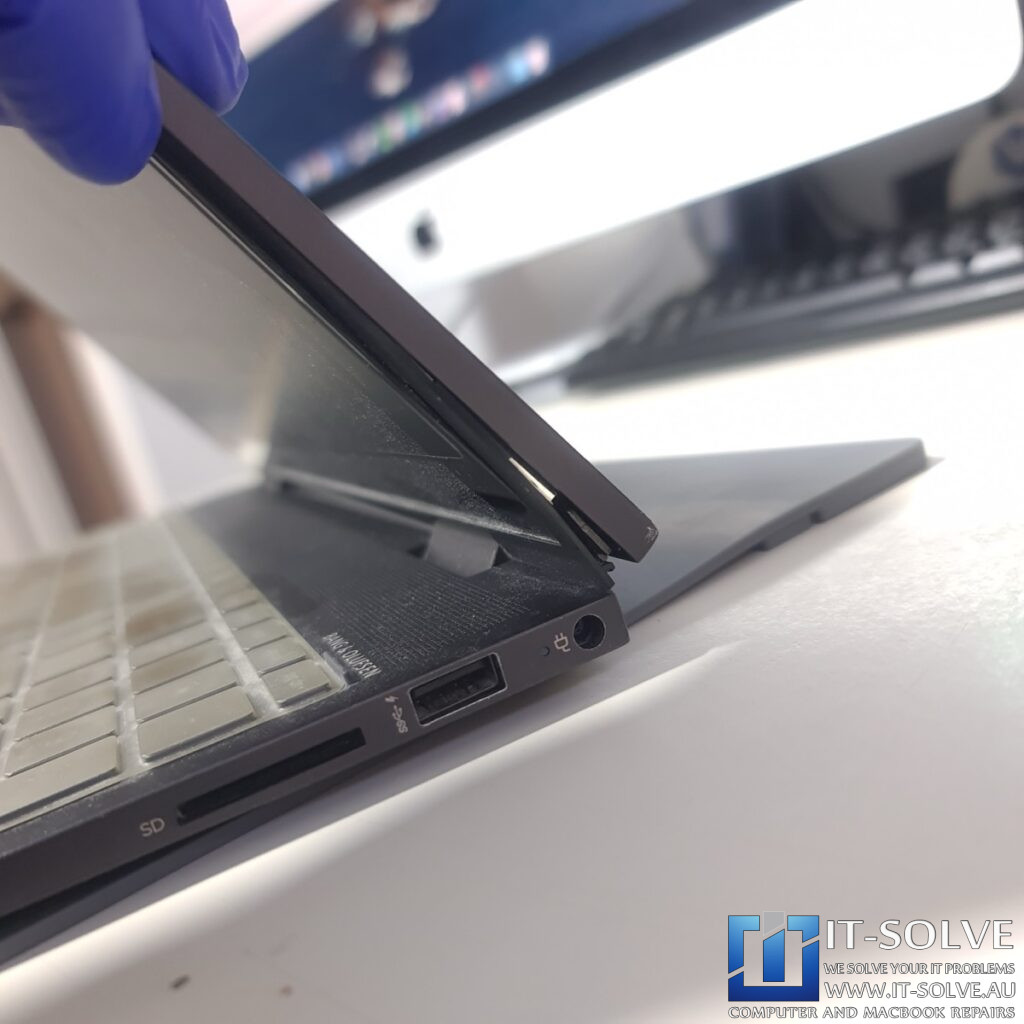

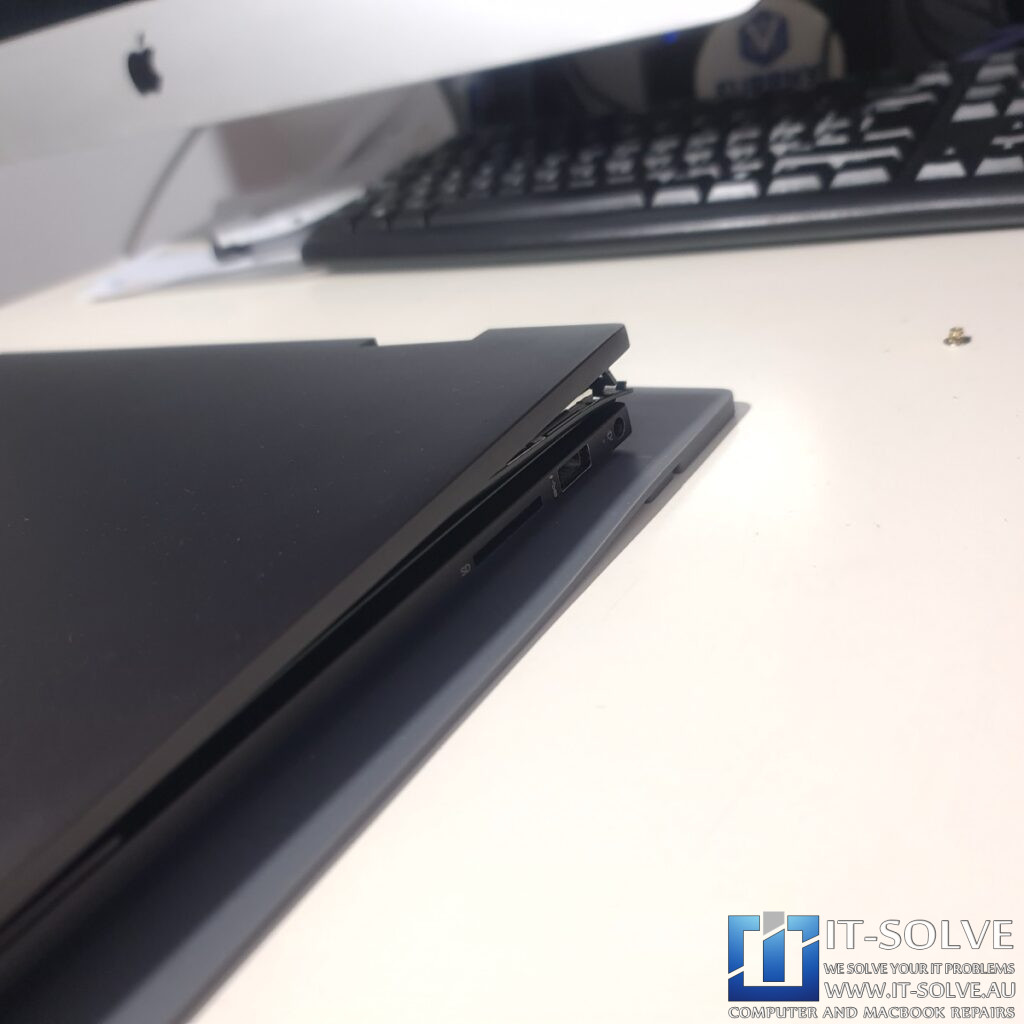

This week at our Adelaide workshop, we encountered a very common structural failure on an HP Envy laptop. The right hinge had completely separated from the back cover, making it impossible to open or close the lid without risking a cracked screen.
Identifying the Source: Plastic vs. Metal

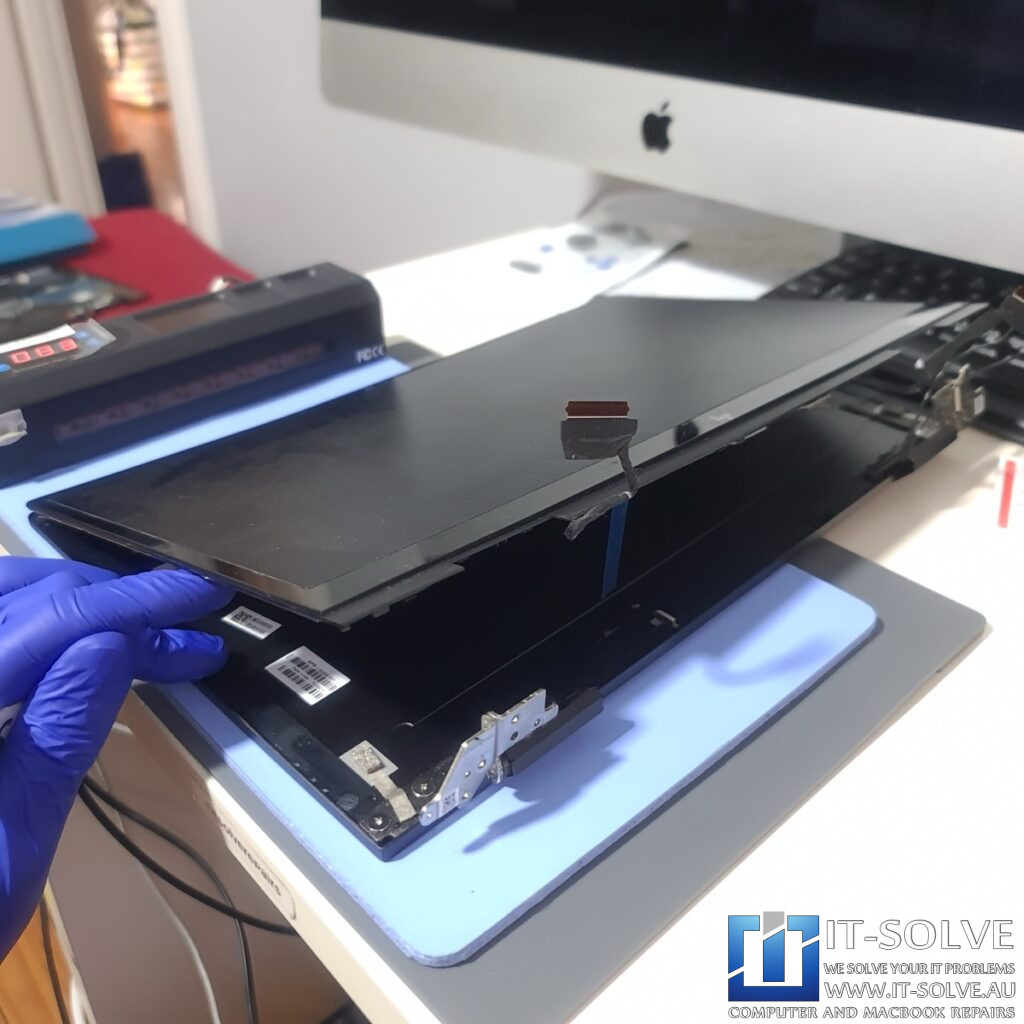

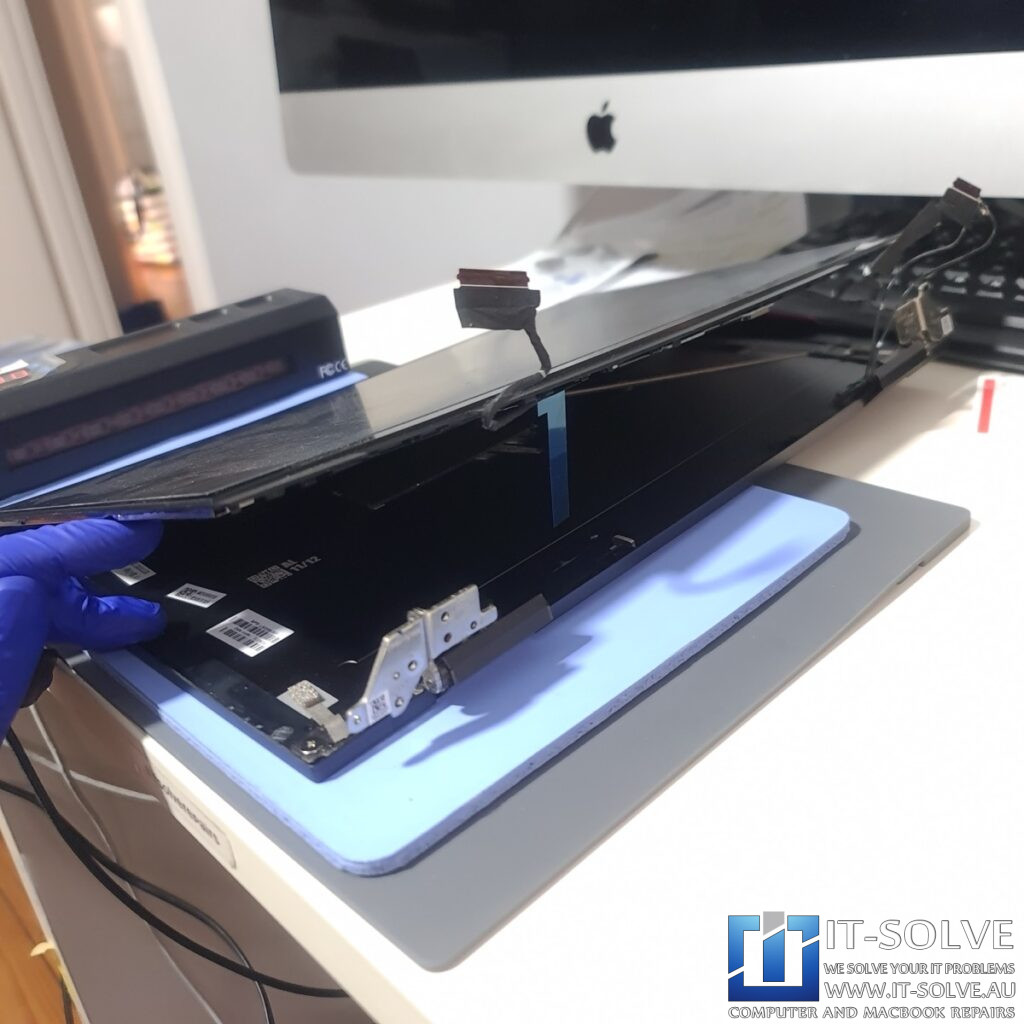

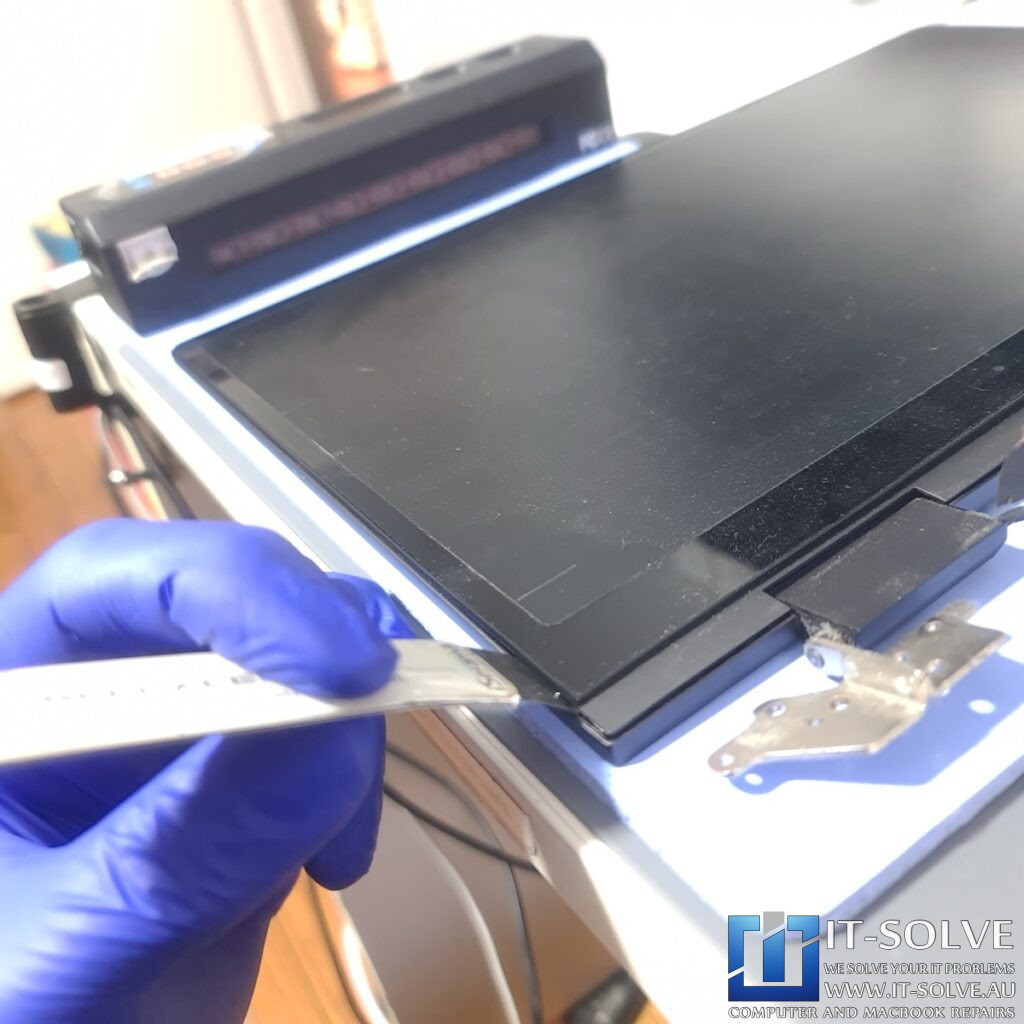

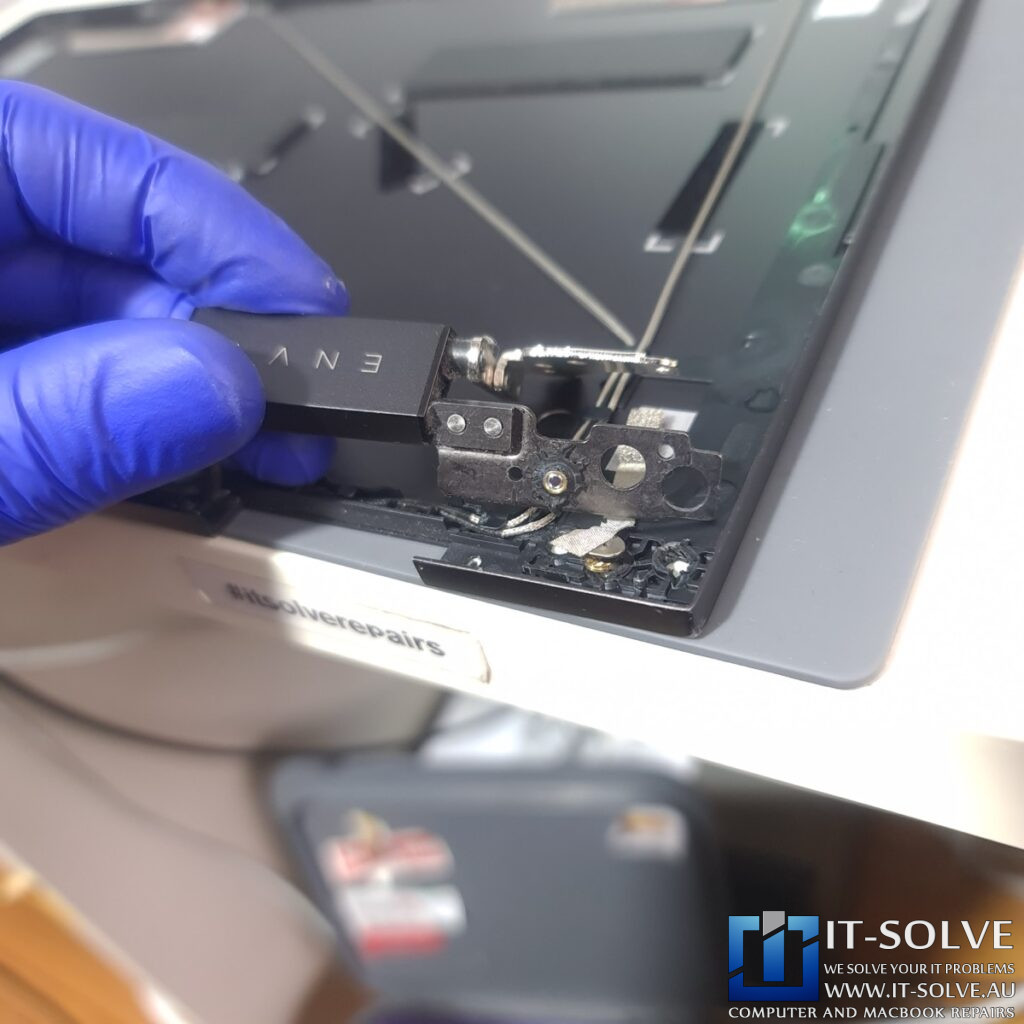

Our first step was to open the device and inspect the internal support structure. Most modern laptops feel sturdy because of their aluminum casing, but internally, the metal hinges are actually secured into small brass nuts fused into fragile plastic. This plastic is simply glued onto the aluminum cover. Over time, dust mixes with the internal hinge grease, causing them to tighten. This extra resistance eventually rips the brass nuts out of the plastic.
The Solution: Why We Don’t Just Replace the Back Cover

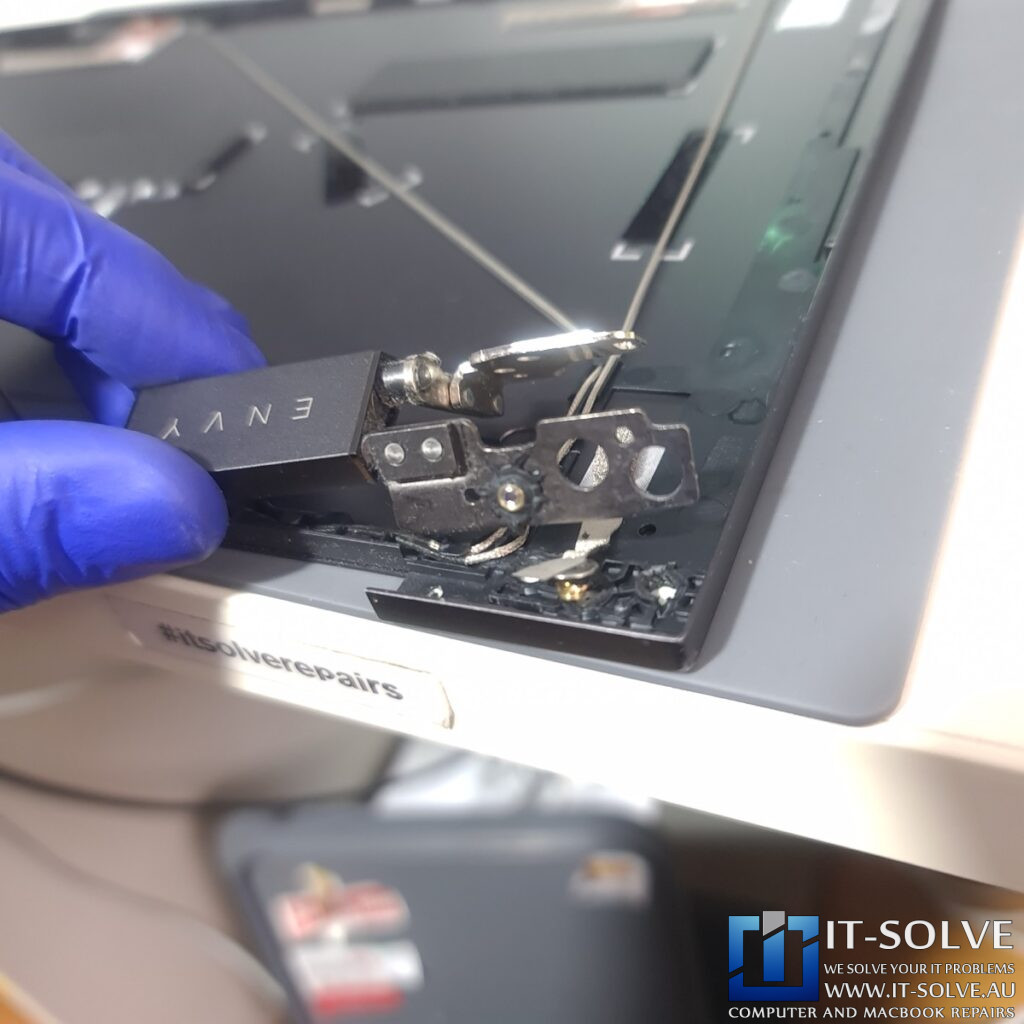

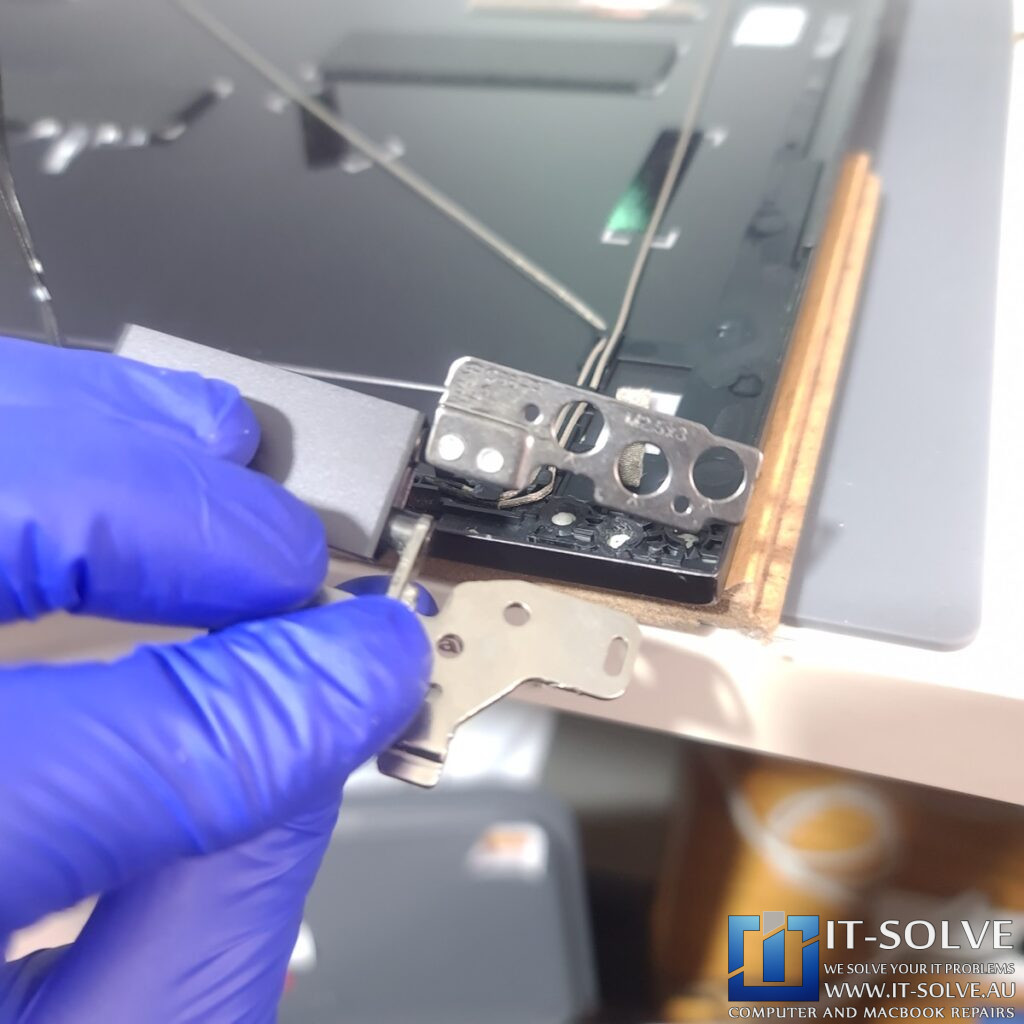

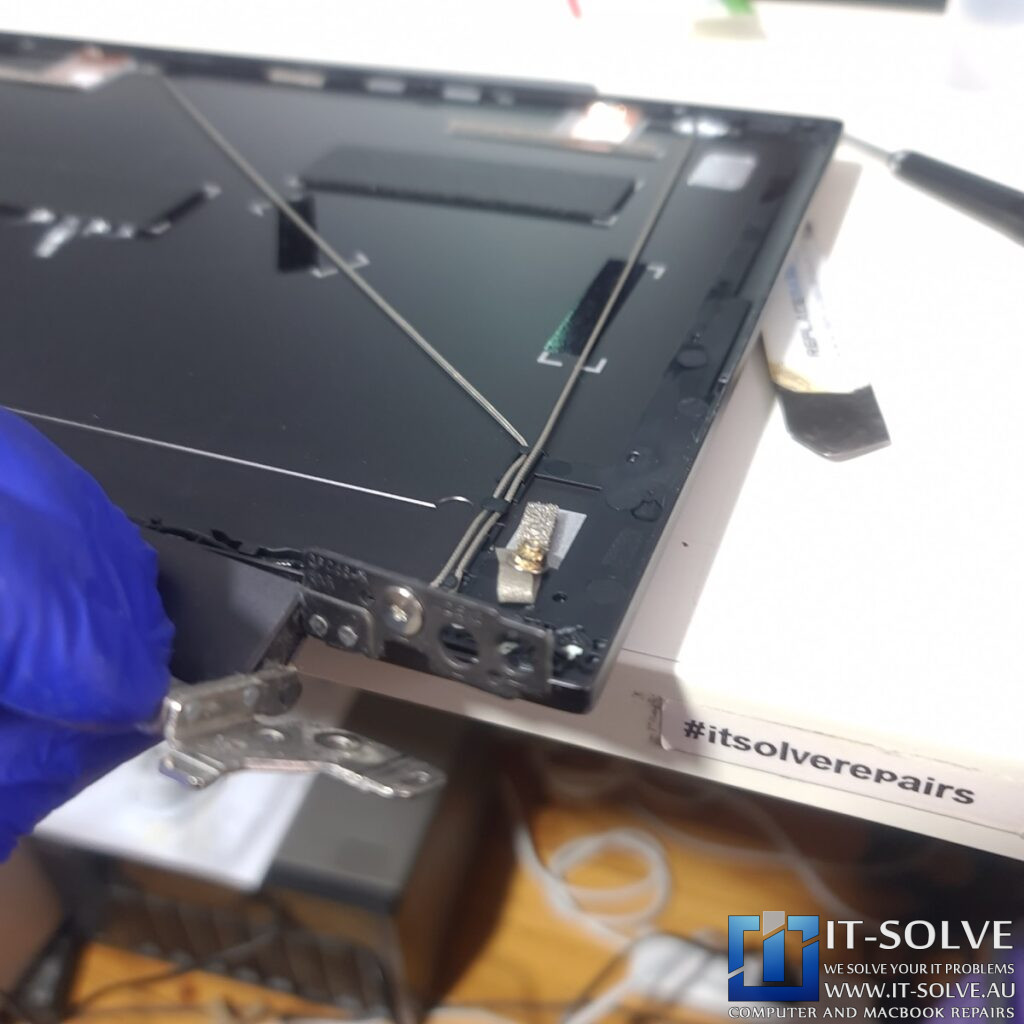

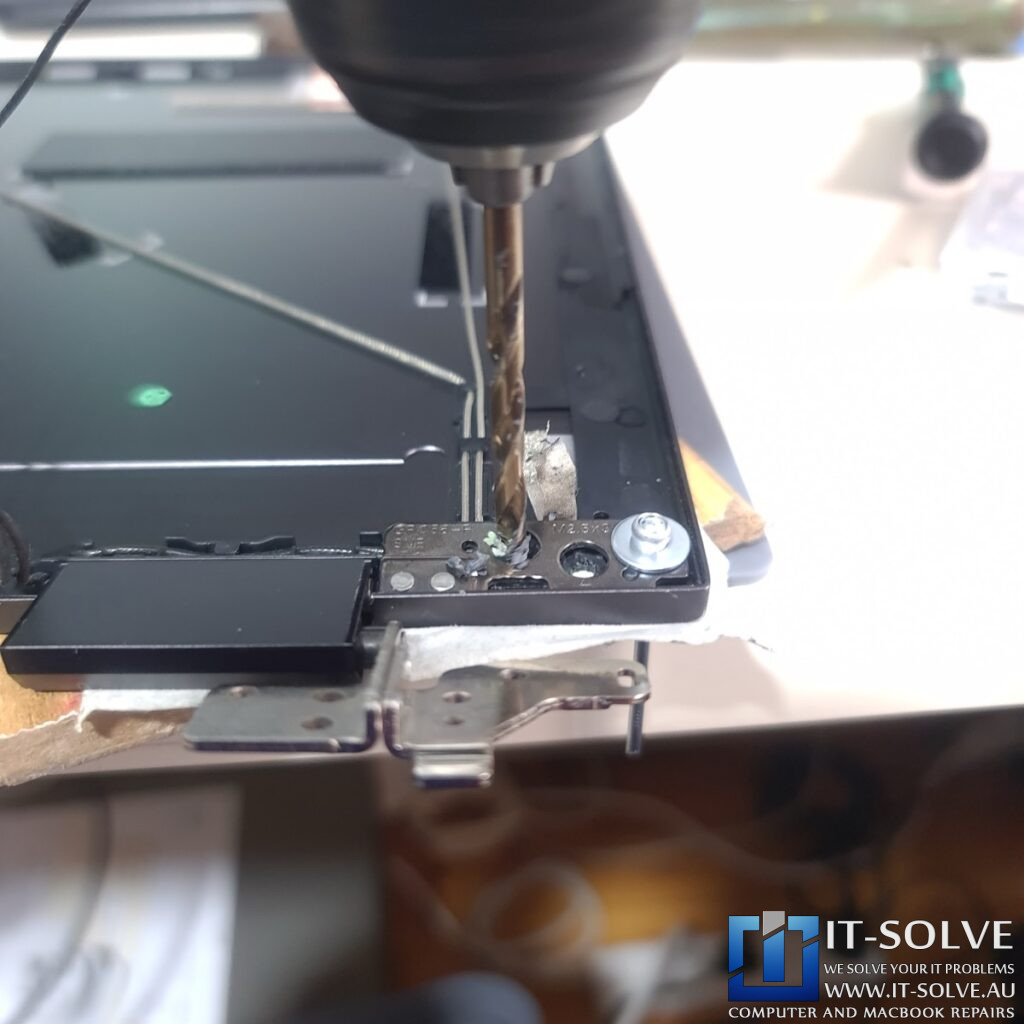

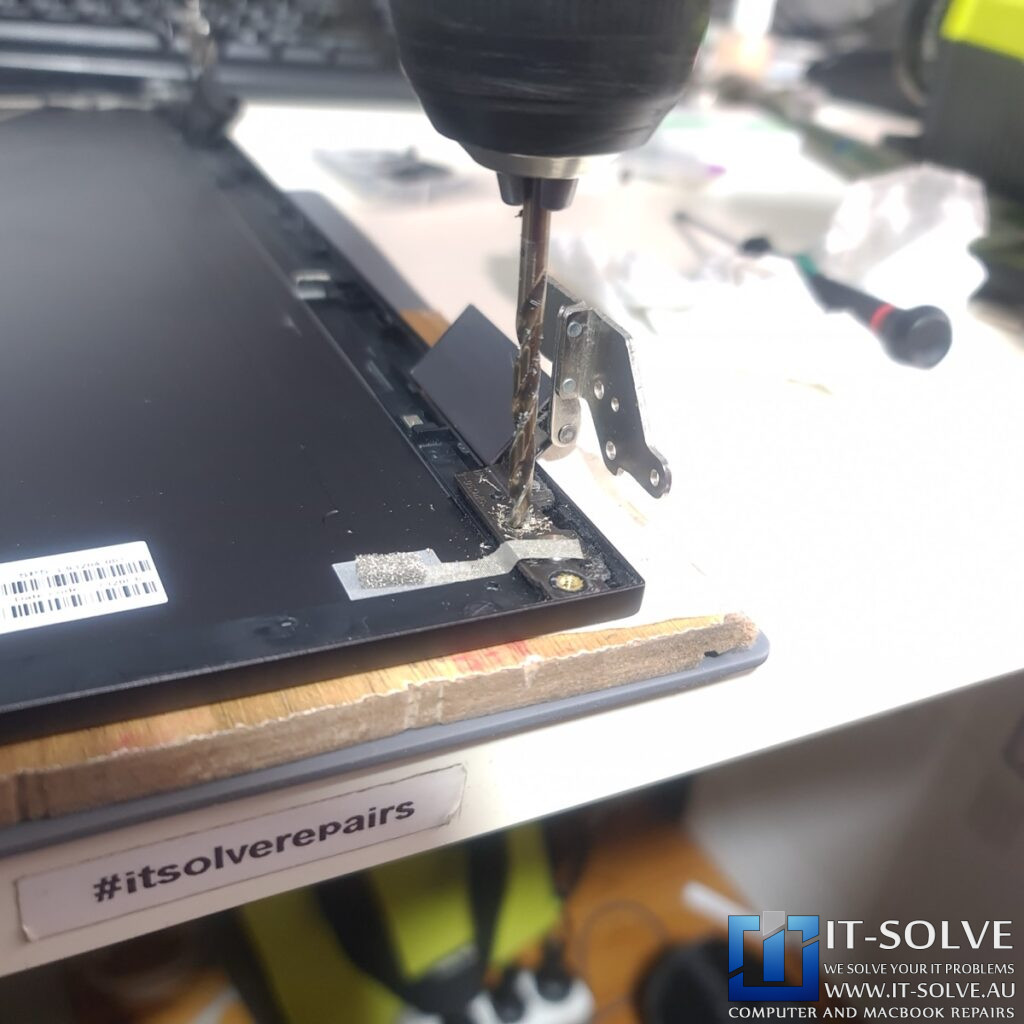

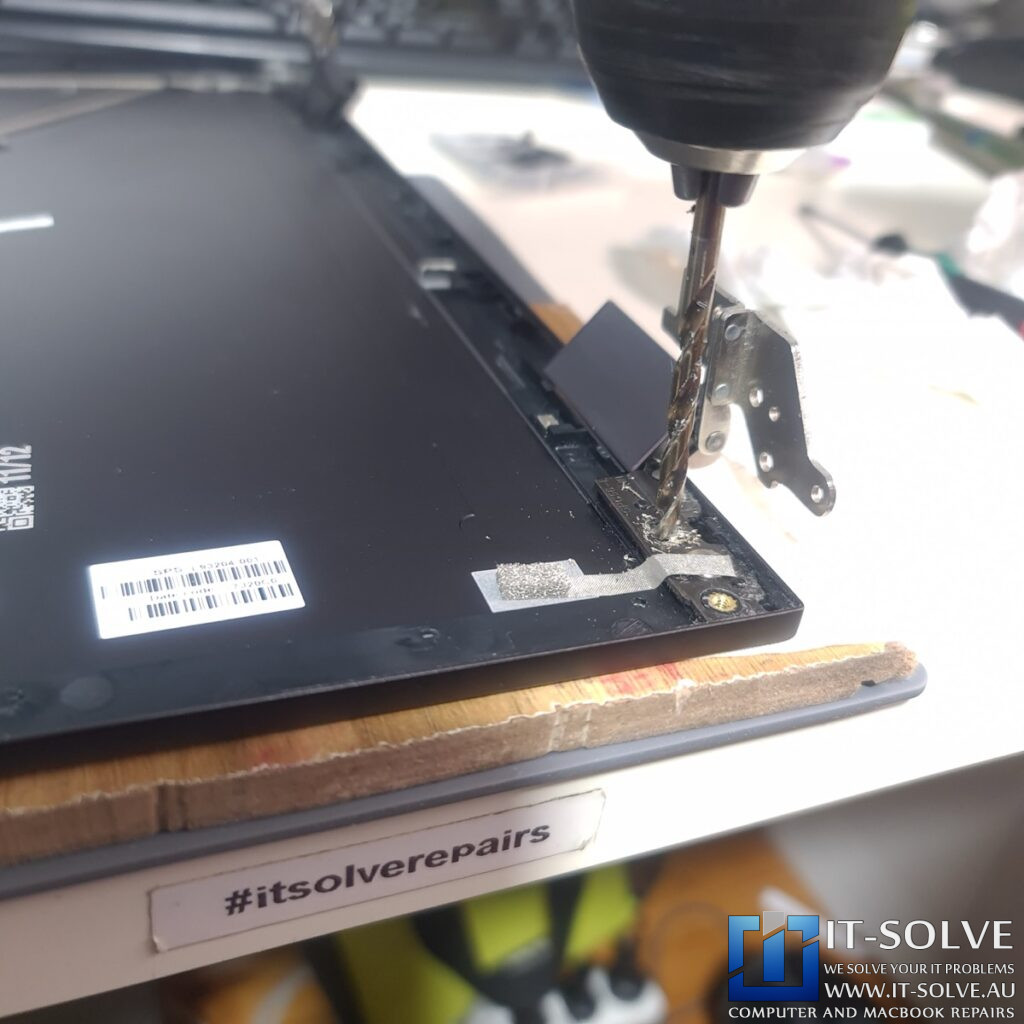

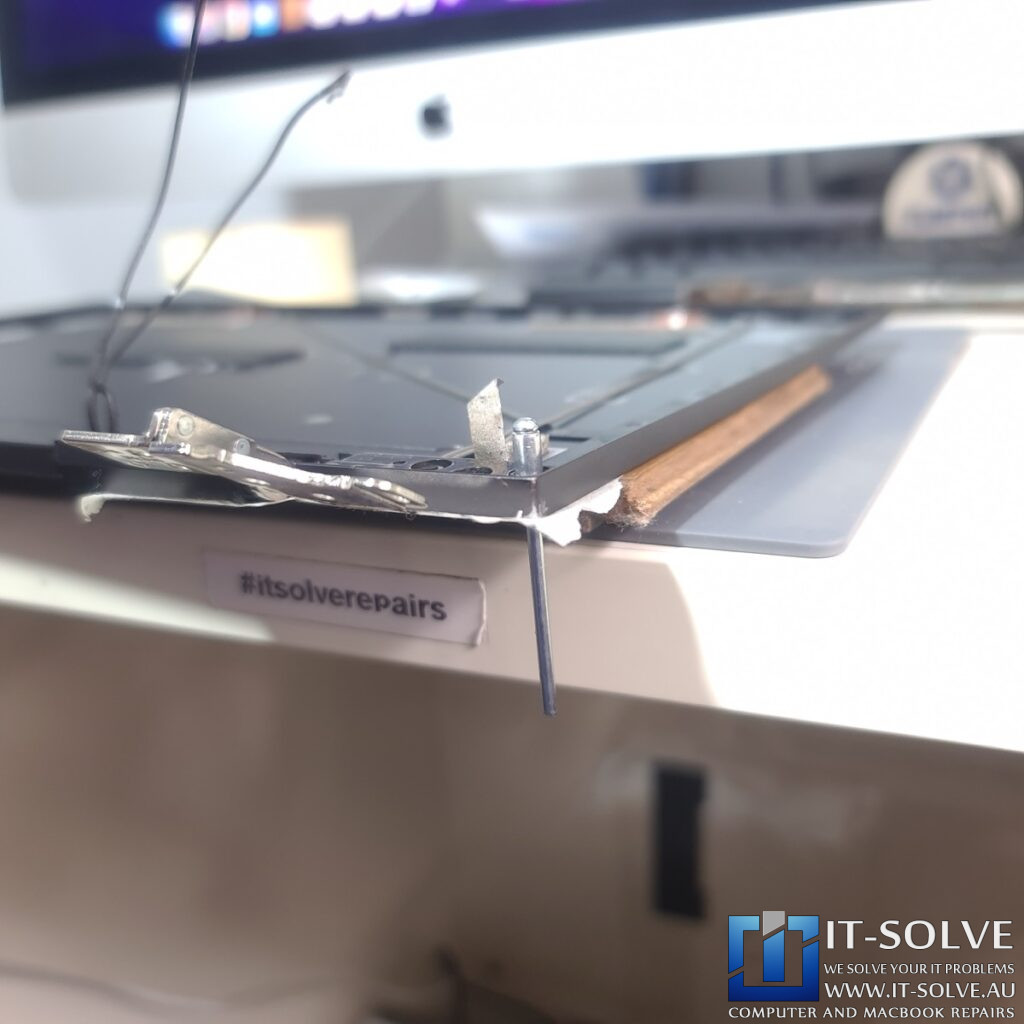

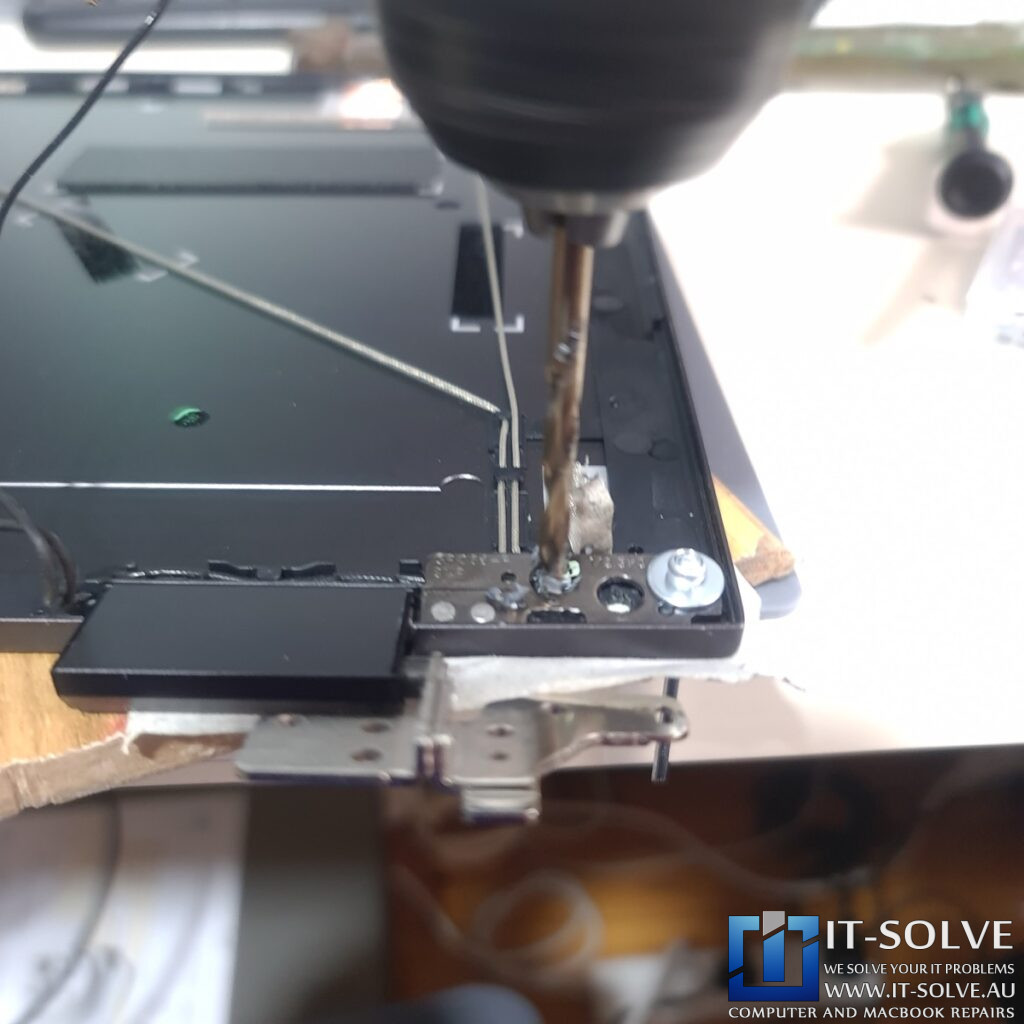

![Photo showing the broken plastic hinge supports and loose brass nuts] While it might seem easier to replace the entire back cover, a new part would have the same design flaw. It would likely fail again in another two years. Instead of a temporary fix, we perform a structural HP Envy Hinge Repair in Adelaide. We choose to drill through the back cover and run aluminum rivets directly through the metal hinge.
Servicing the Hinges for Longevity

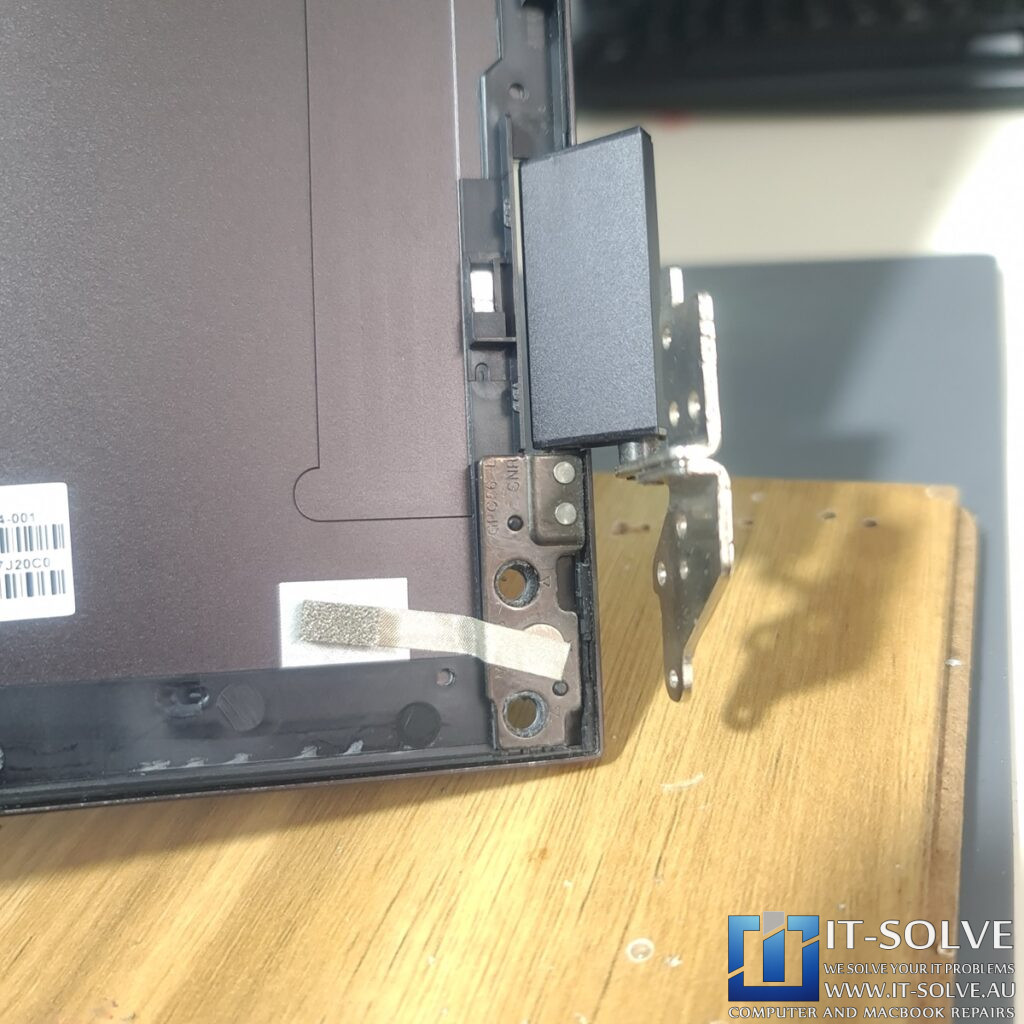

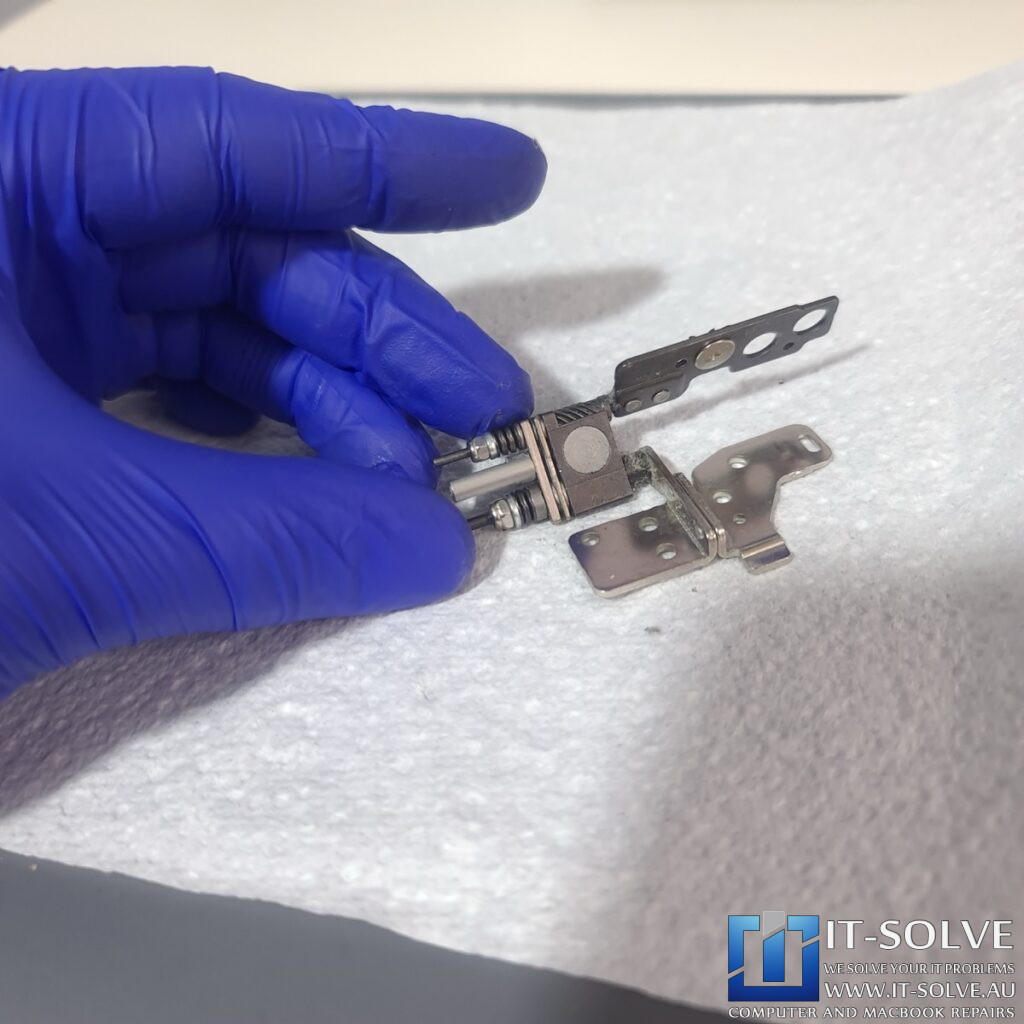

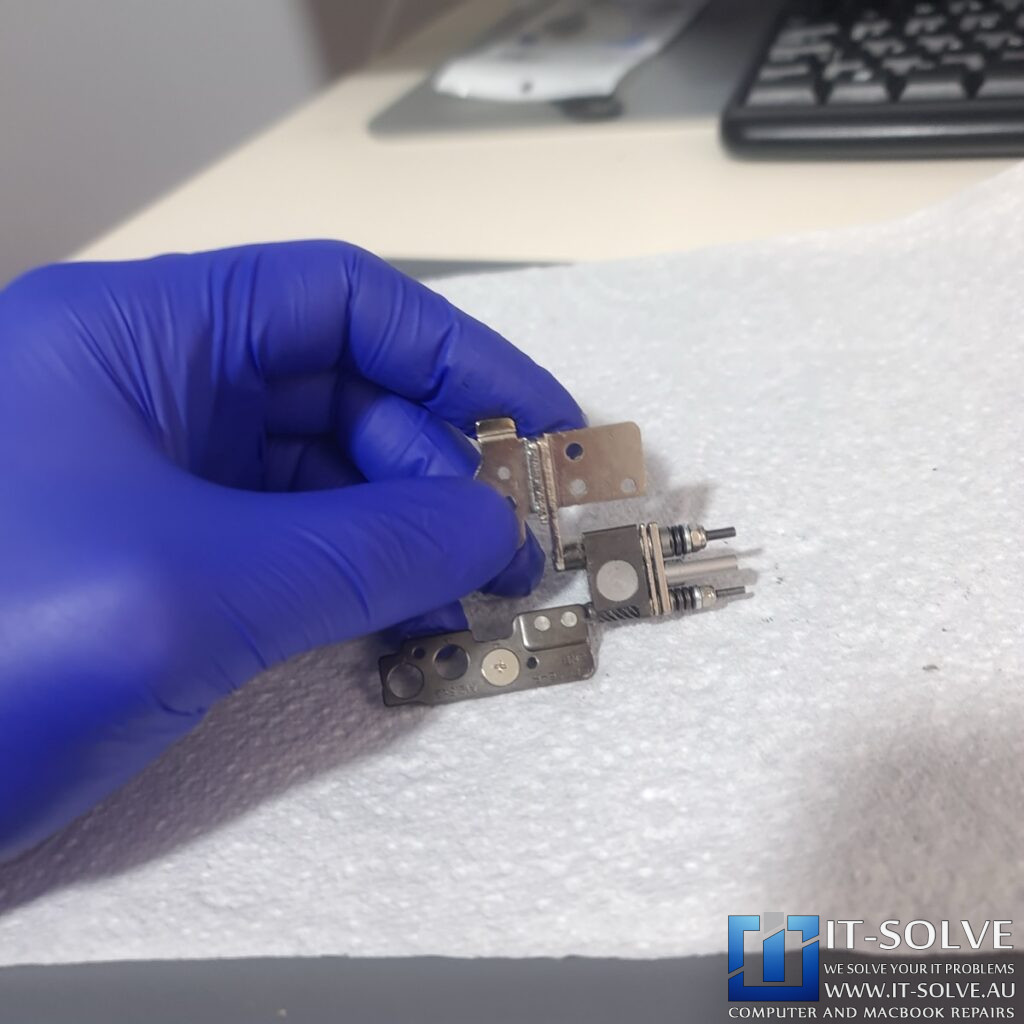

We don’t just fix the break; we address the root cause. We clean and oil the hinges to restore their smooth motion. By reducing the torque required to move the lid, we ensure that the new structural support isn’t under unnecessary strain. We also reinforced the left hinge as a preventative measure.
Creating a Metal-to-Metal Connection

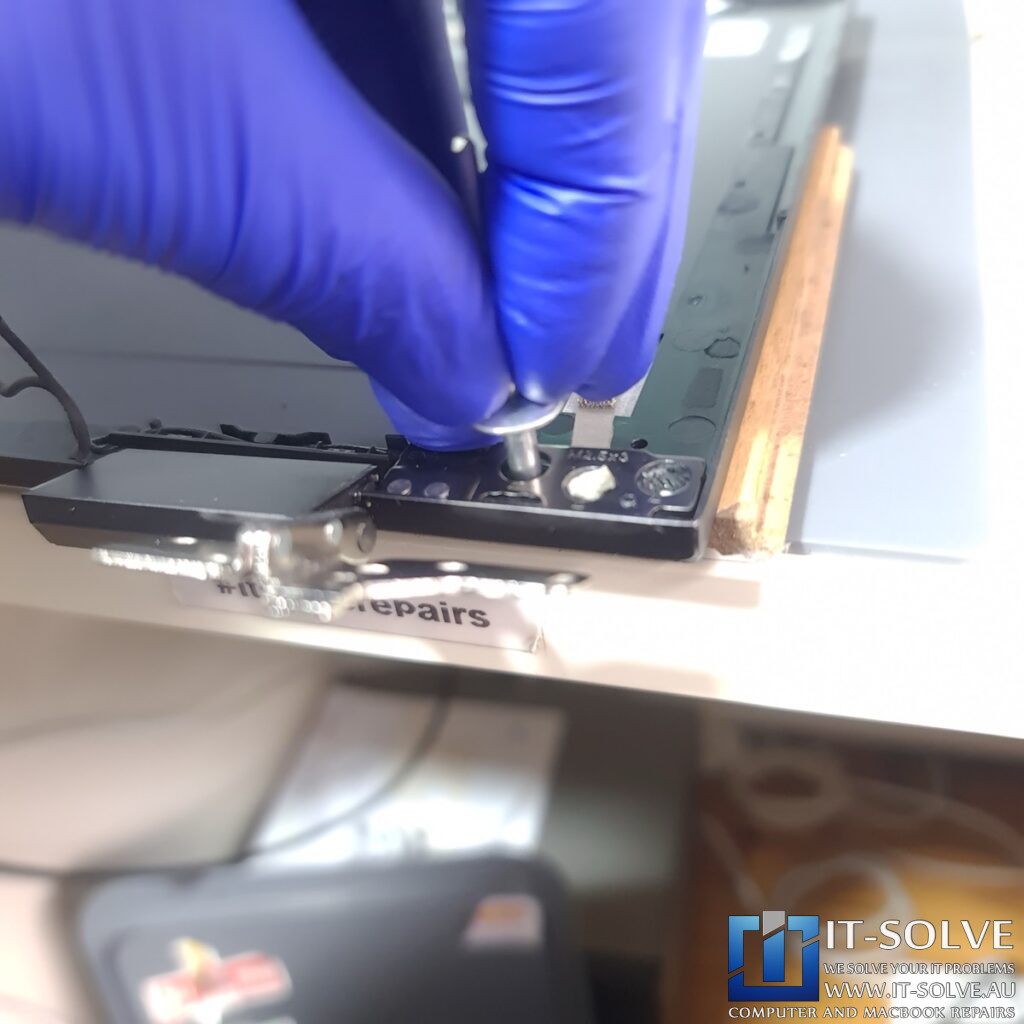

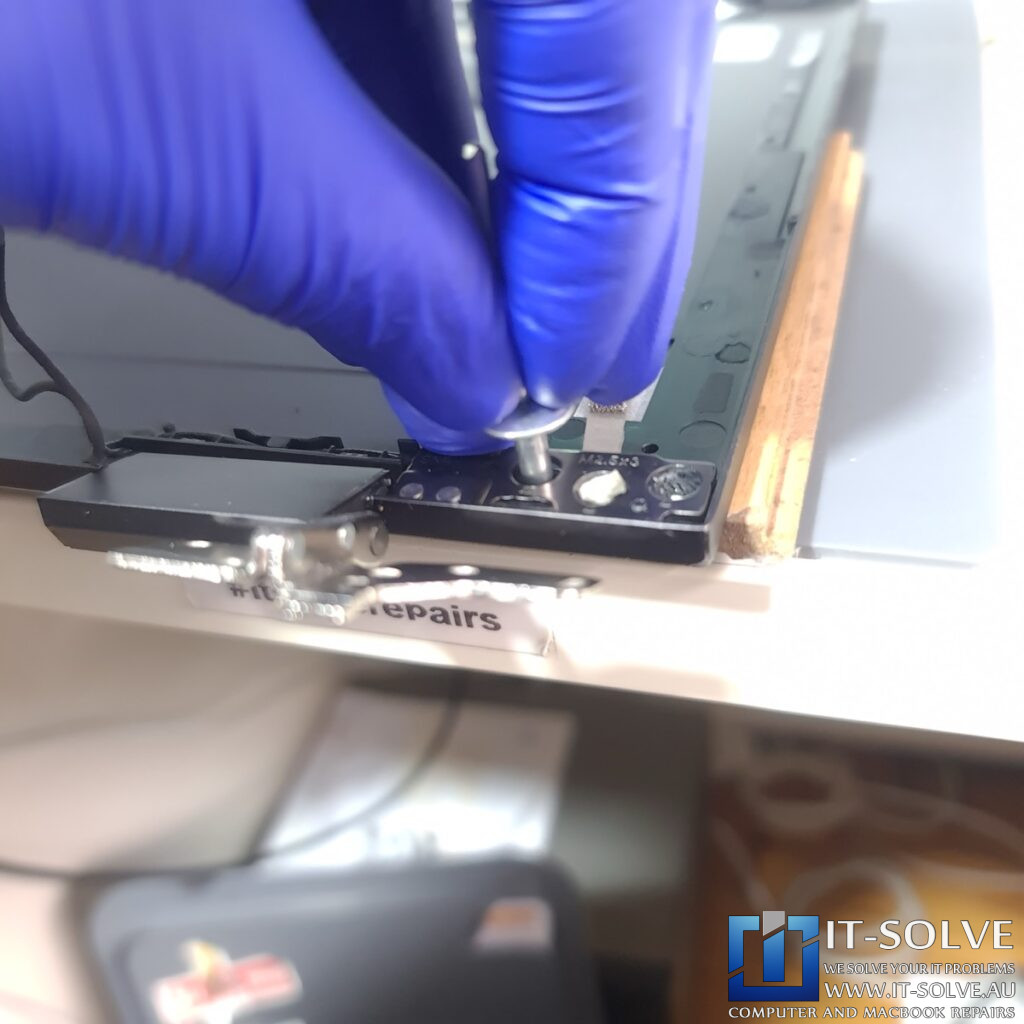

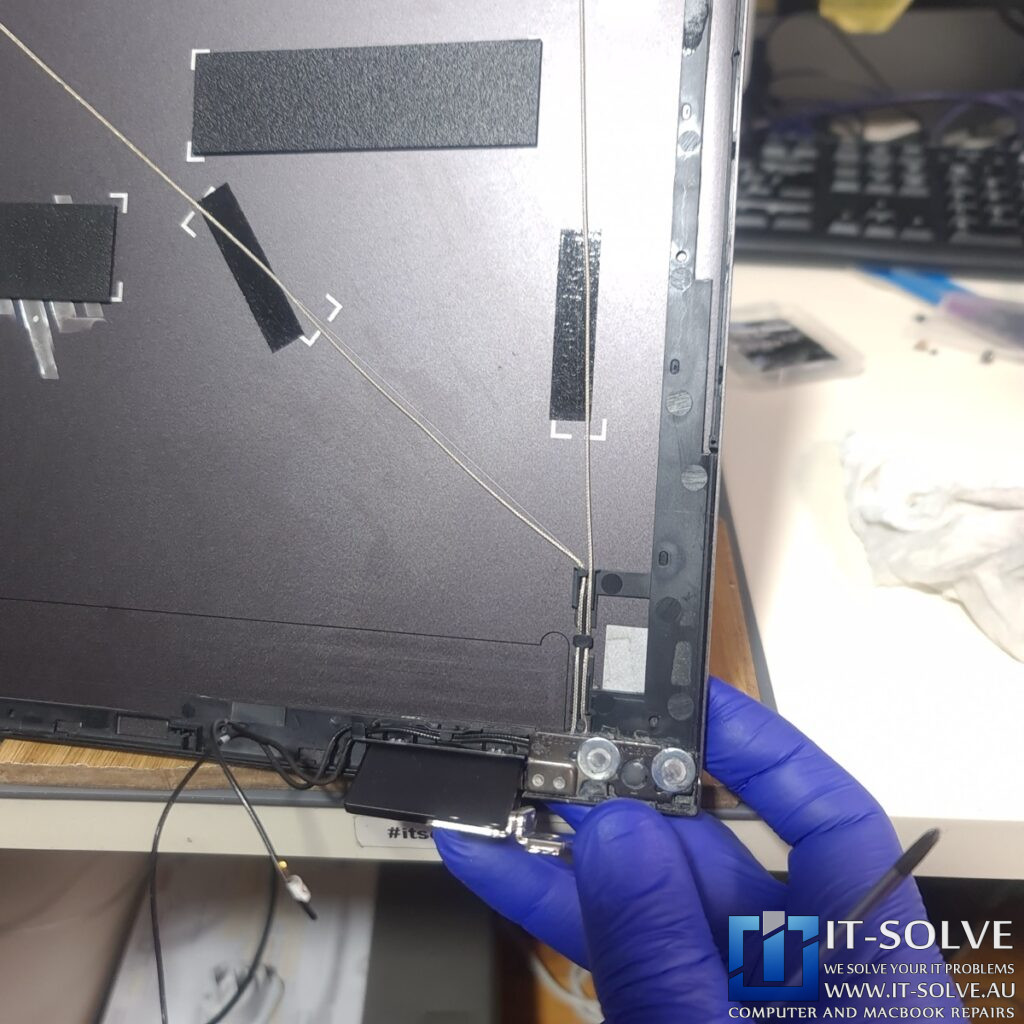

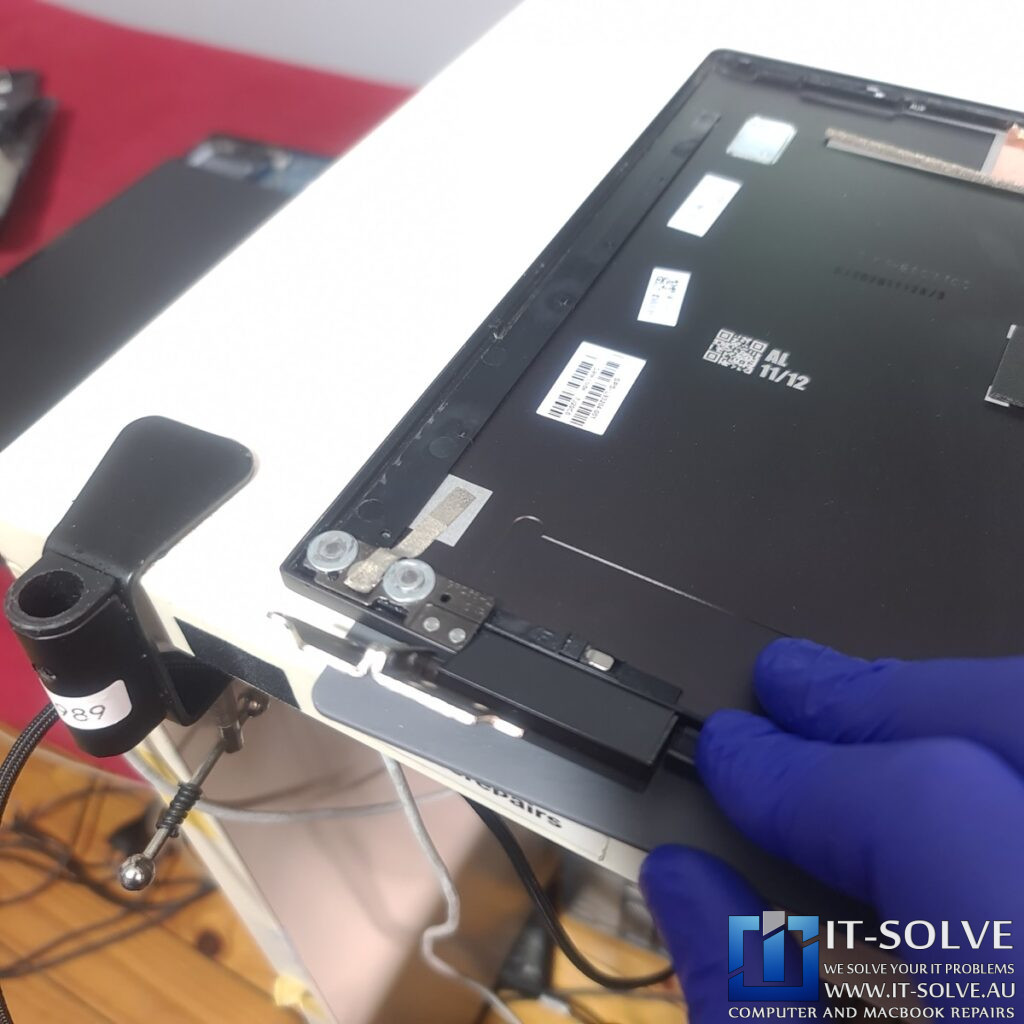

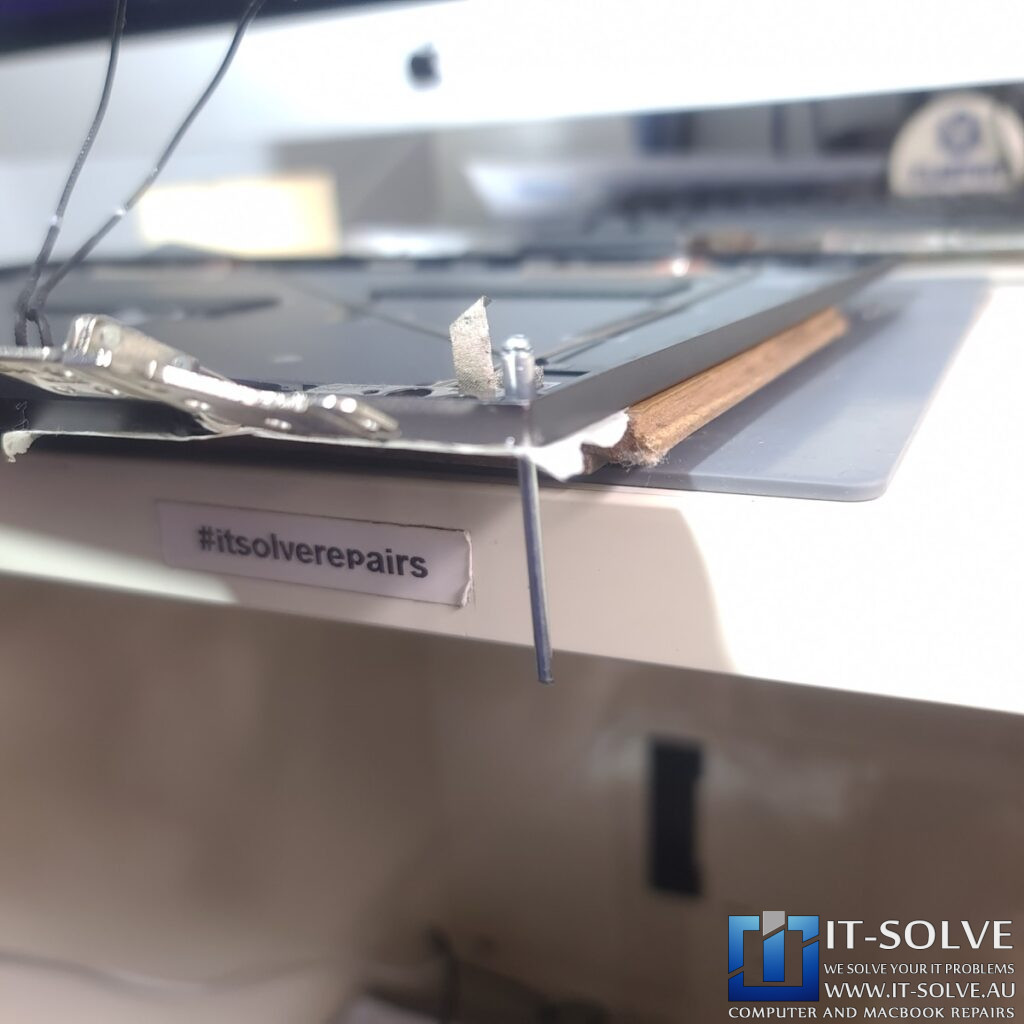

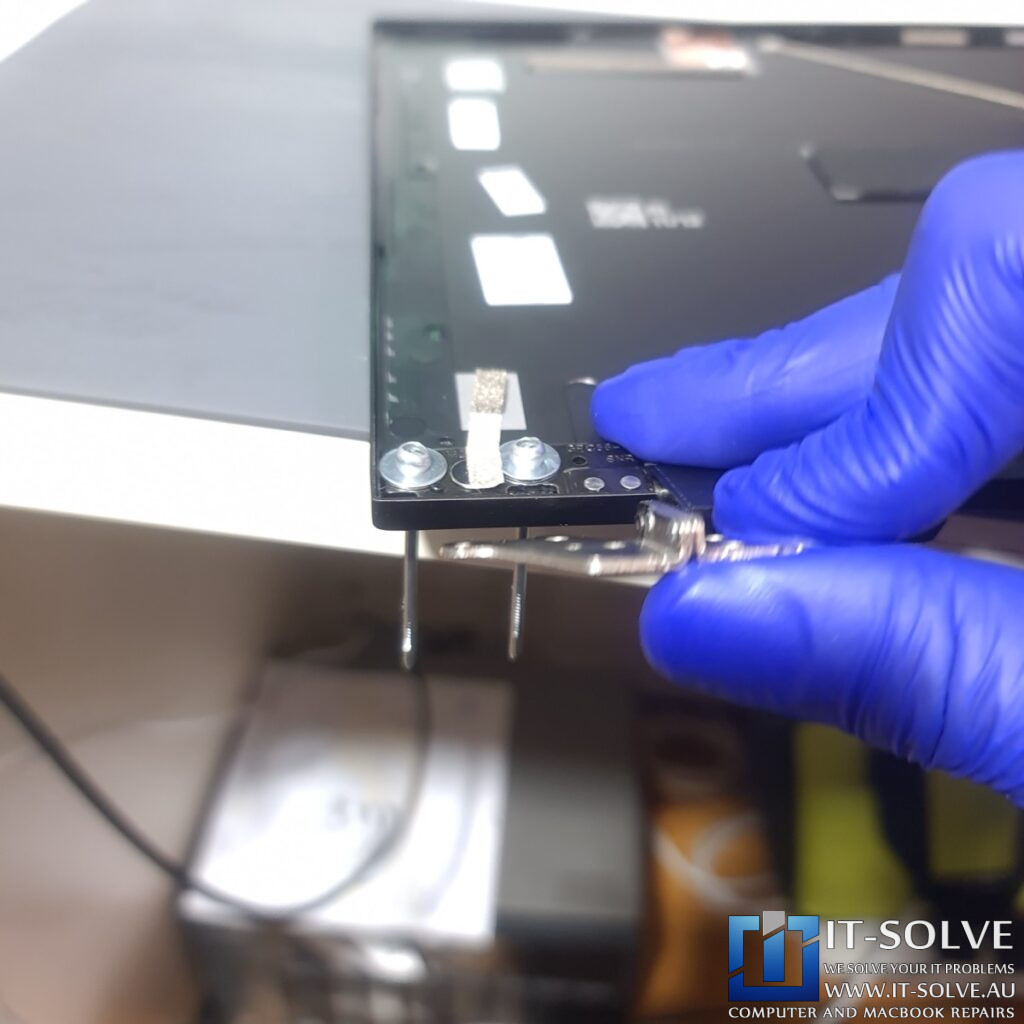

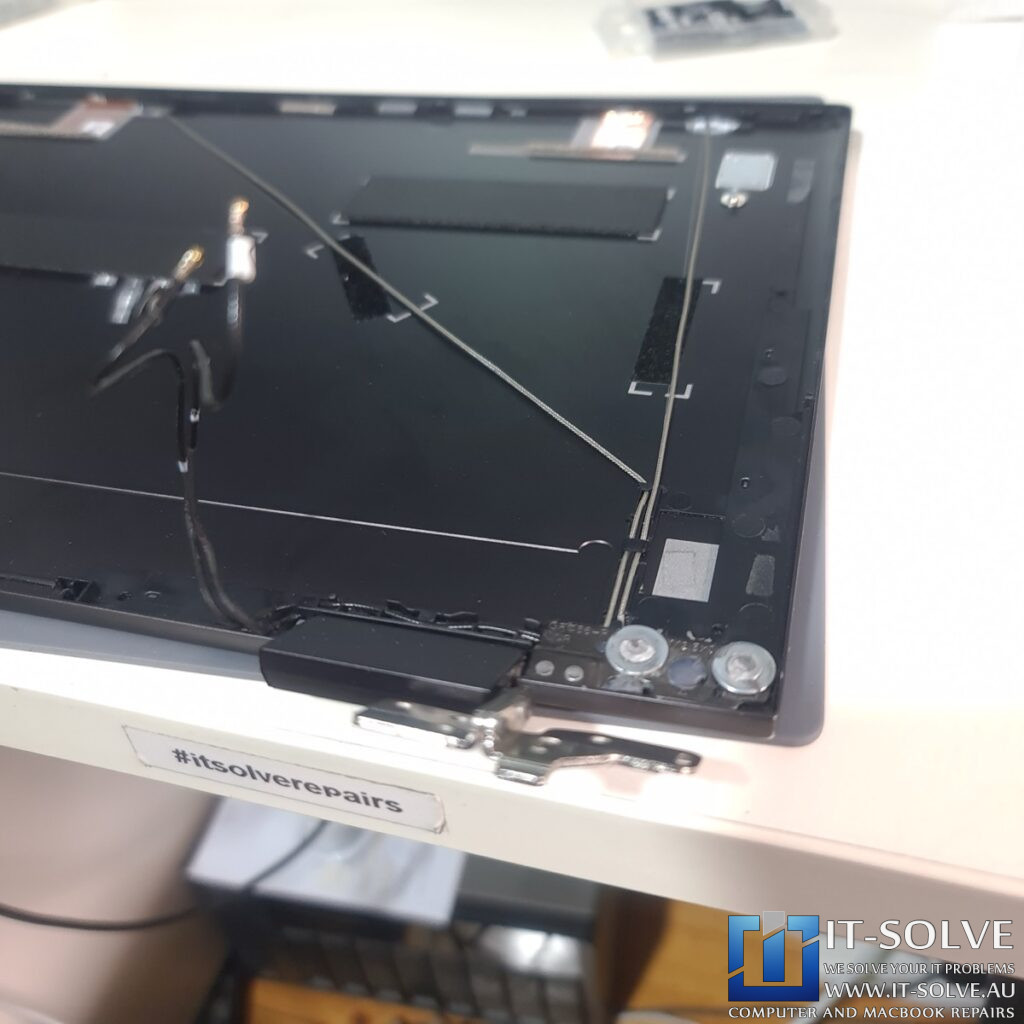

By using aluminum rivets, we bypass the weak plastic support entirely. This creates a permanent “sandwich” between the metal hinge and the outer aluminum case. This metal-to-metal connection is significantly stronger than the original factory design and ensures the repair will outlast the laptop itself.
#itsolverepairs

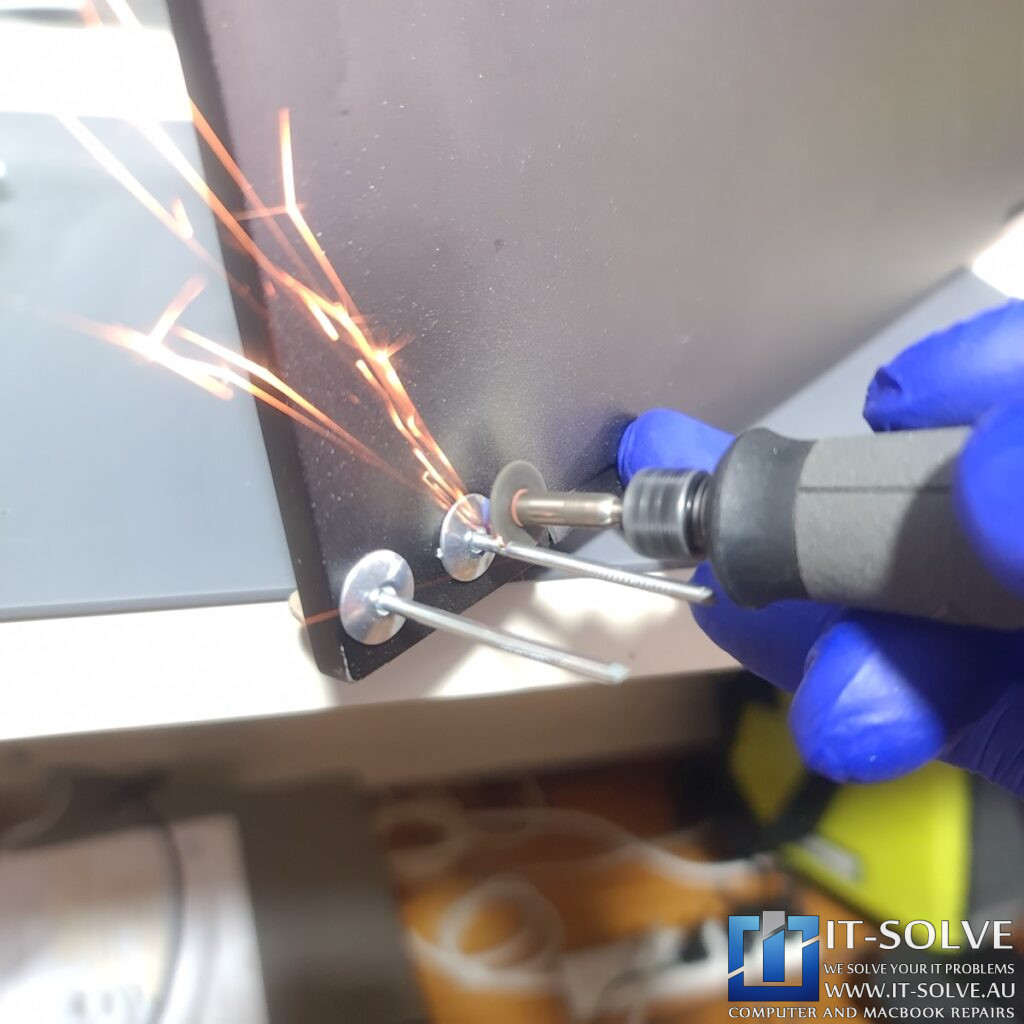

Precision Metalworking for a Slim Profile

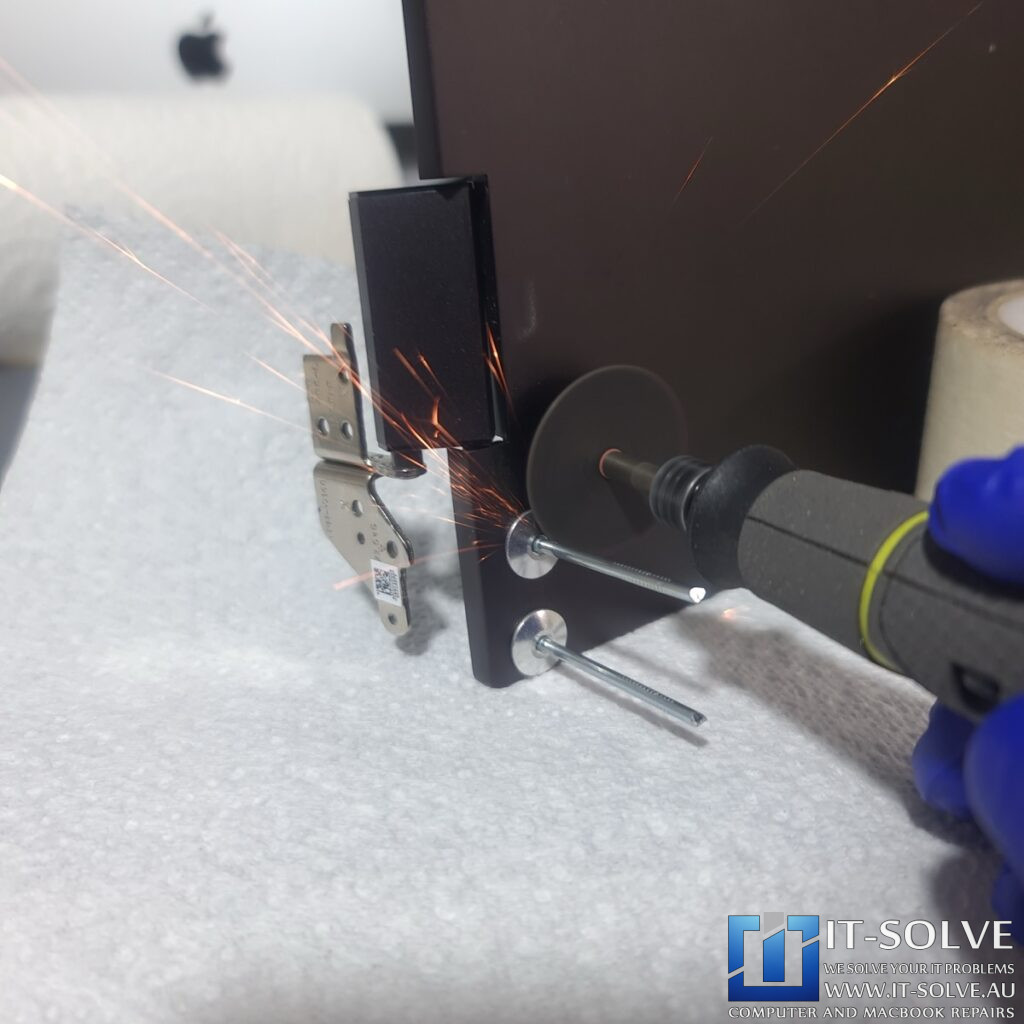

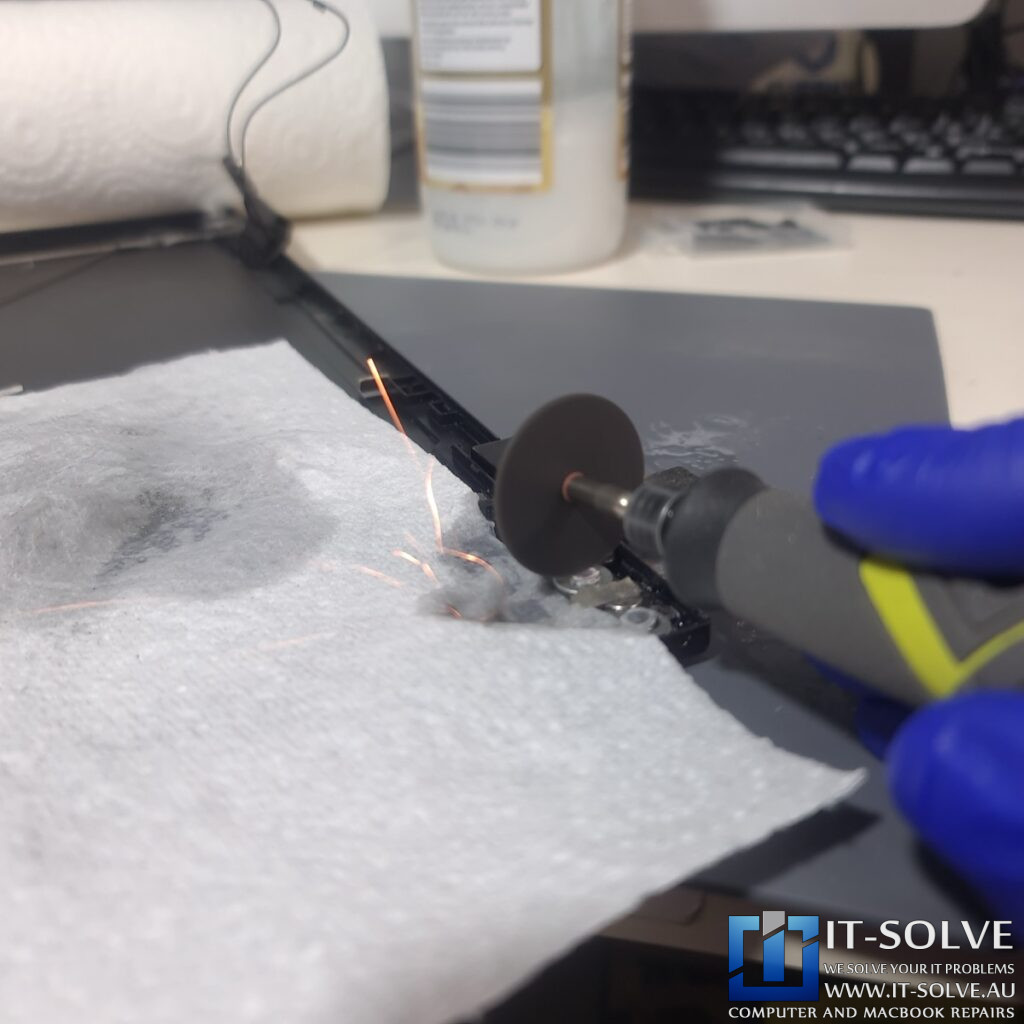

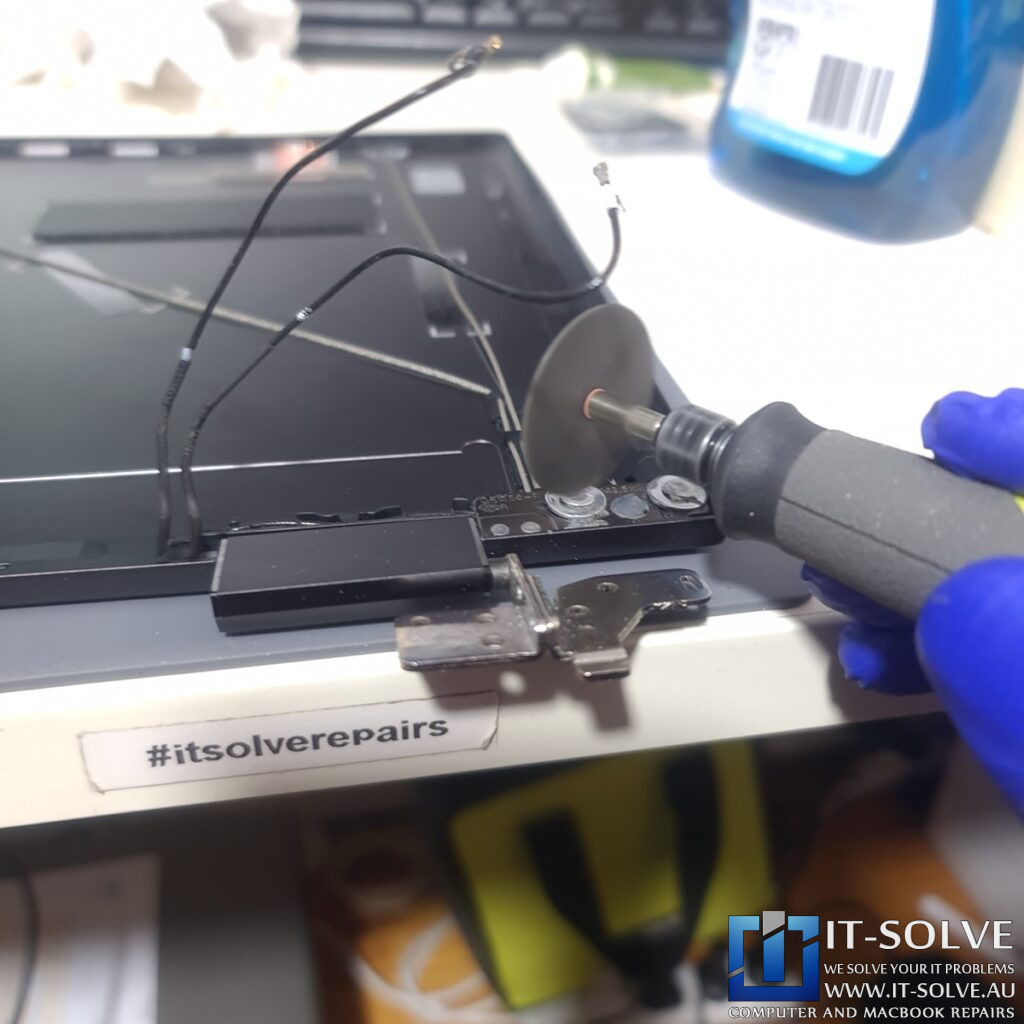

Newer HP Envy models use extremely low-profile LCD panels, leaving almost zero clearance between the screen and the back cover. Installing these rivets requires high precision and metalworking skills to ensure that the screen can sit flush once reassembled without any pressure points that could cause display damage.

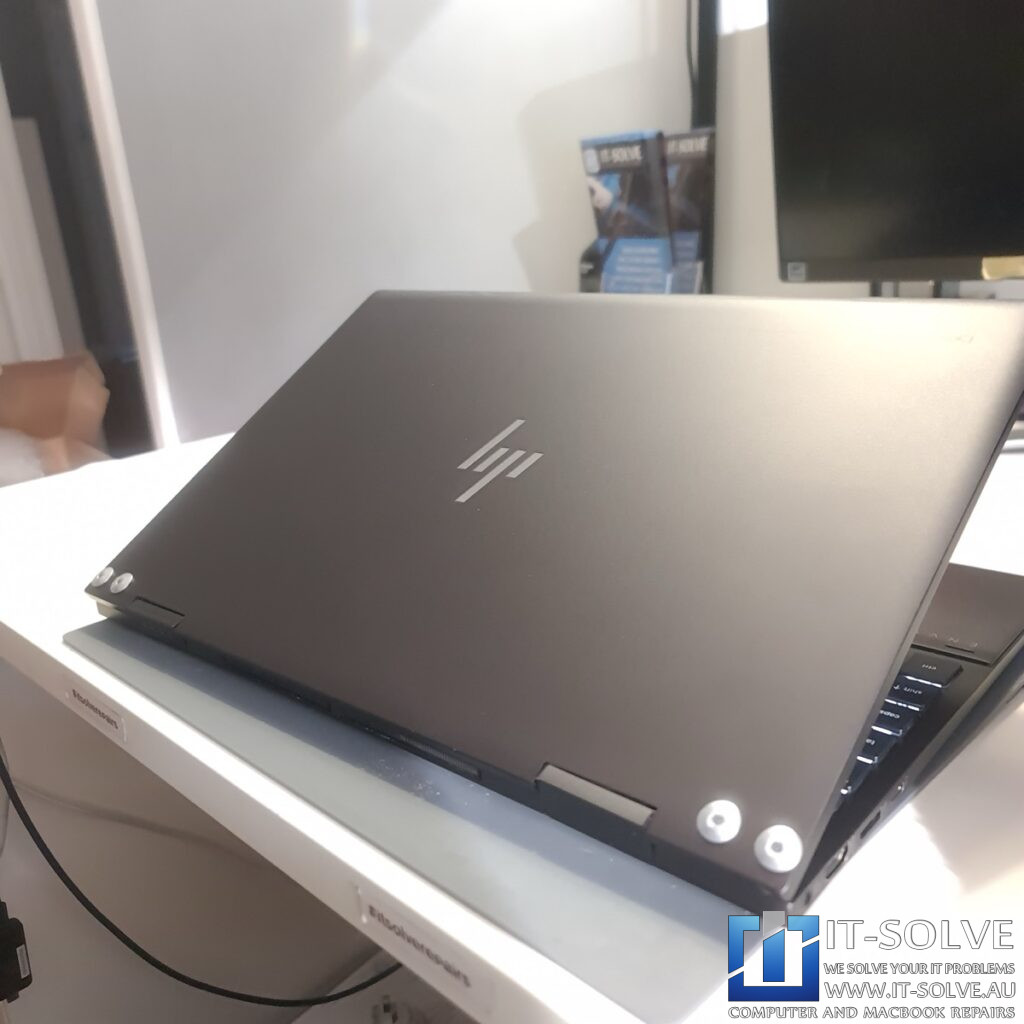

Back in Business: A Permanent Structural Repair

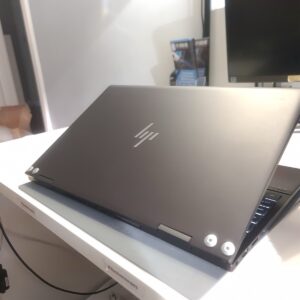

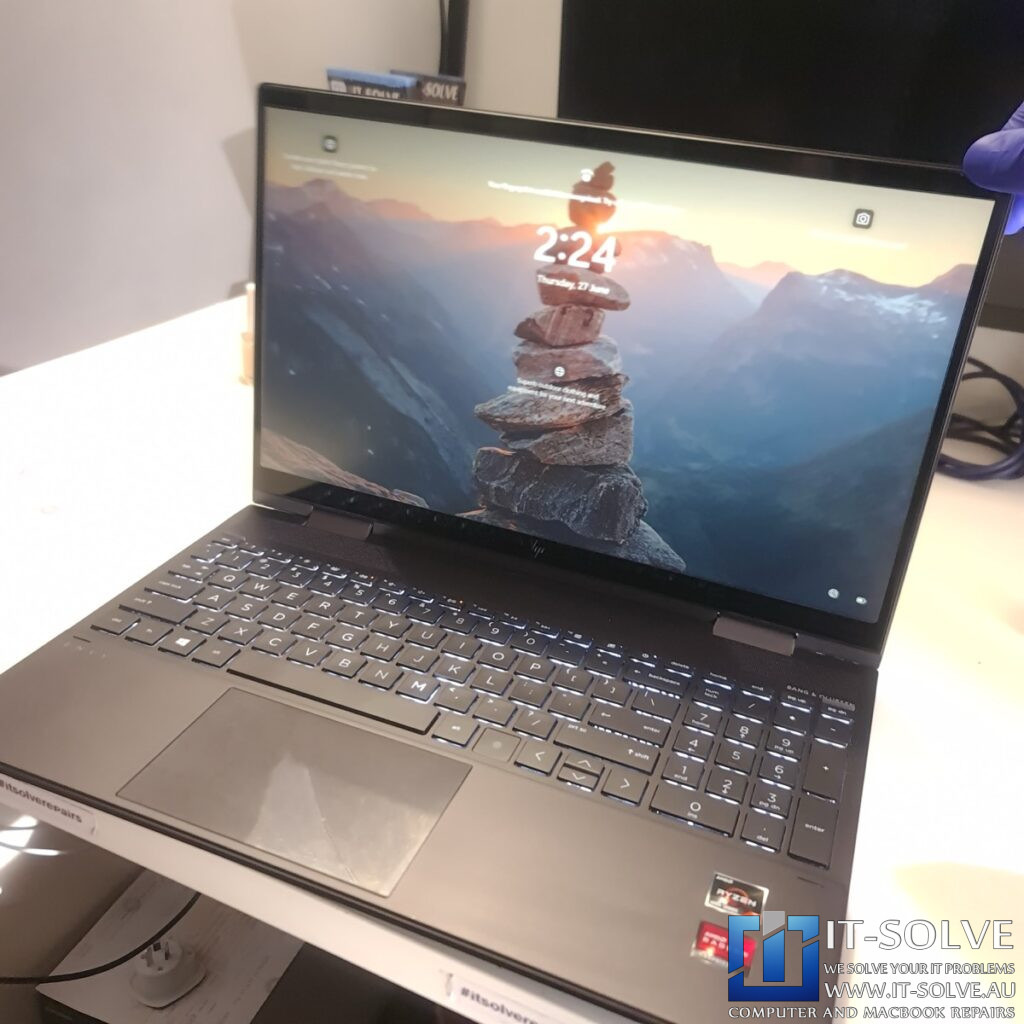

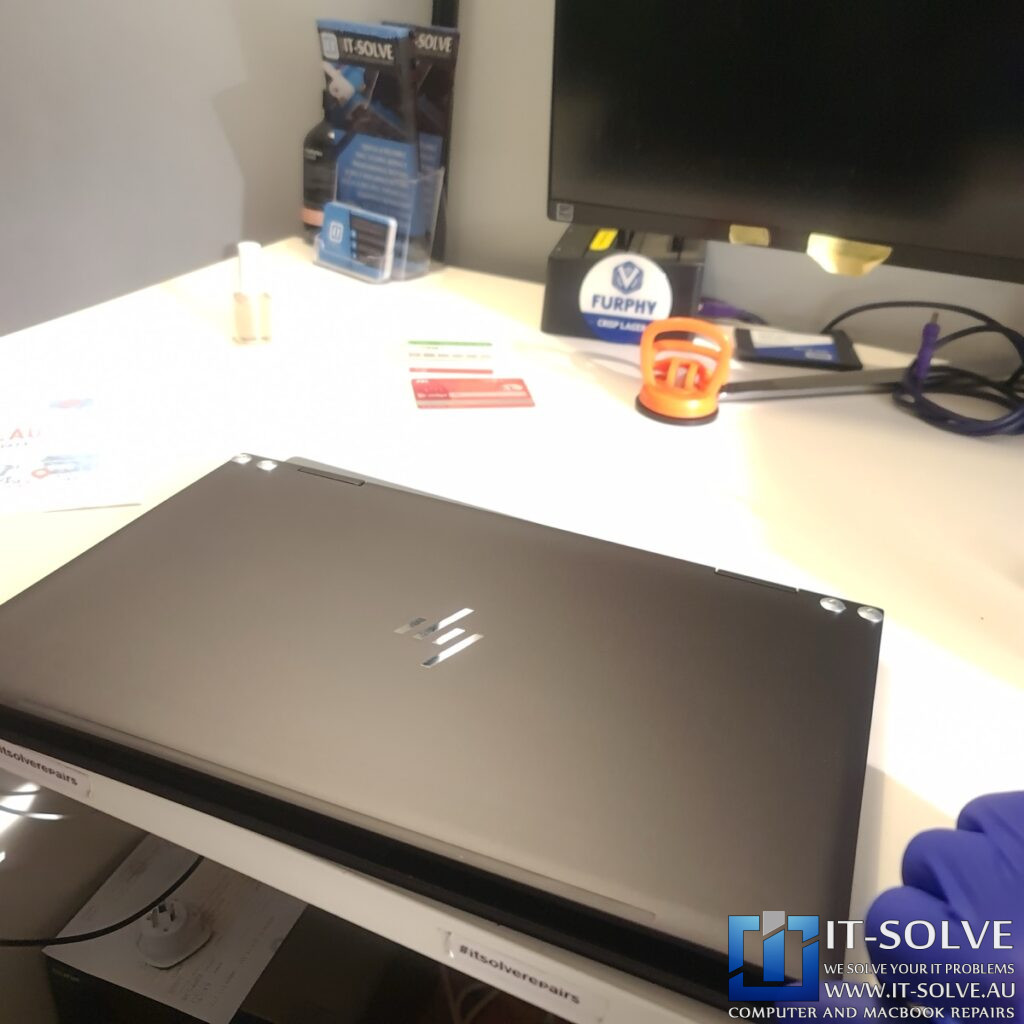

Success! The HP Envy is now fully functional and structurally sound. The exterior rivets are a small trade-off for a laptop that is now stronger than it was the day it left the factory.
Adelaide’s Specialist for Laptop Hinge Repairs
By choosing a structural repair over a simple part replacement, we saved this laptop from the landfill and saved our client the cost of a new back cover. If you are experiencing similar issues, check out our Laptop Hinge Repair section to see how we can help. Another successful repair in the books!
