Diagnosing a Dead 2020 MacBook Air

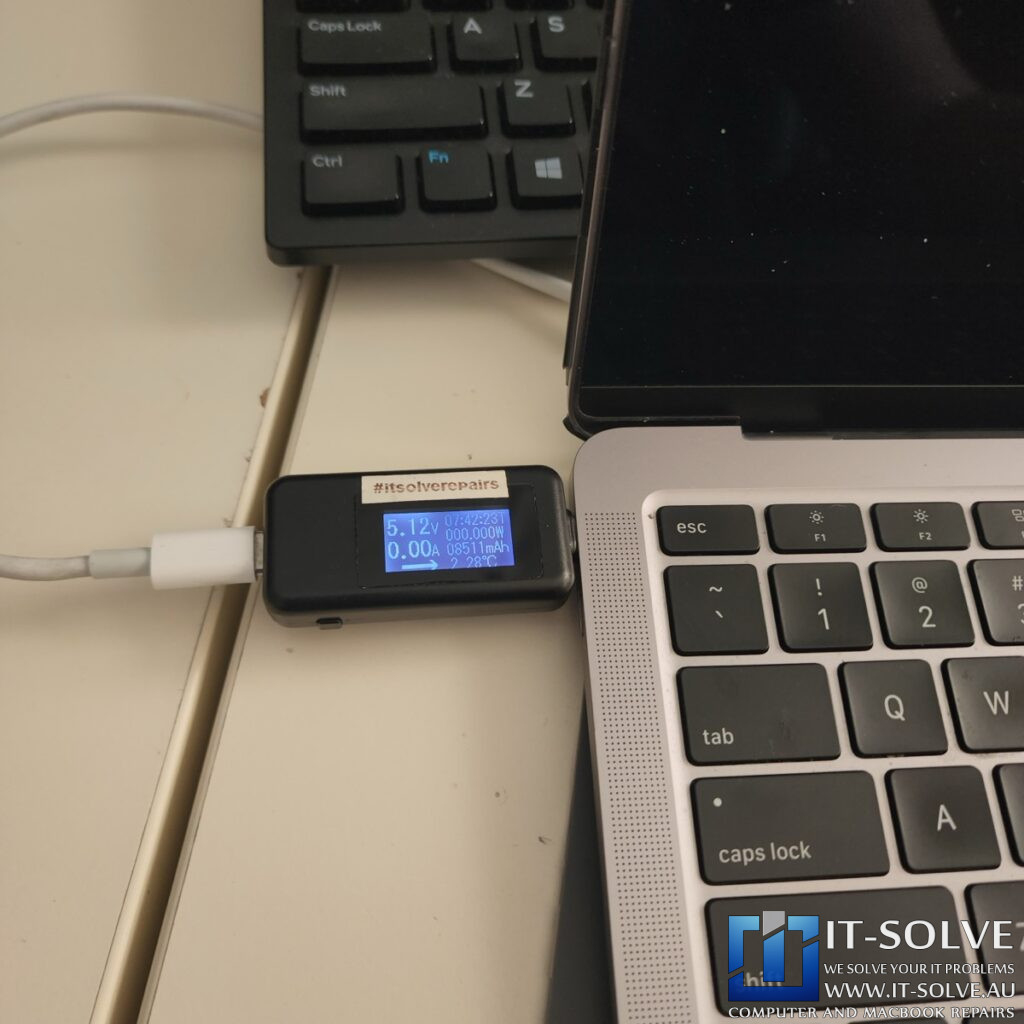

A professional MacBook Air A2337 not turning on repair was necessary for this 2020 model. Initially, the machine arrived completely unresponsive. When we connected the USB-C ammeter, it showed a reading of 5 volts and 0 amps. This specific measurement indicates a major power failure. Because we found no signs of liquid damage inside, we suspected a catastrophic electronic failure. Typically, these issues occur due to overheating or a failed internal component.
MacBook Air A2337 Not Turning On Repair – Short Circuit Discovery
Identifying the PPBus Short and Audio Board Fault
Our investigation began with a manual inspection of the logic board’s primary power lines. We discovered a direct short circuit on the PPBus_AON line. This rail acts as the most important voltage path in the entire system. Consequently, a short here prevents the MacBook from negotiating the 20V power delivery it needs to boot. To isolate the fault, we began disconnecting peripheral components one by one.
Interestingly, the short circuit disappeared immediately after we disconnected the audio board flex cable. This suggested that a failed component on the audio daughterboard was pulling down the entire system’s power. We moved the audio board under the microscope to investigate further. It is common for high-stress capacitors in this area to crack and fail due to continuous heat cycles.
Advanced Fault Finding with Thermal Imaging
To confirm the exact location of the failure, we used a specialized voltage injection technique. We applied a small amount of voltage to the shorted line and monitored the board through an infrared thermal camera. As shown in our diagnostic video, a single capacitor began to glow under the heat. This thermal signature confirmed the failed part. Therefore, we removed the faulty capacitor to clear the short circuit from the board.
The fanless design on these MacBook Air models is a major failure point. This lack of active cooling often leads to consistent overheating. For instance, running demanding software like the macOS Sequoia operating system puts immense pressure on the weak cooling system. Over time, this intense heat stress causes small capacitors to fail, which can shut down the whole device.
MacBook Air A2337 Not Turning On Repair Successfully Completed

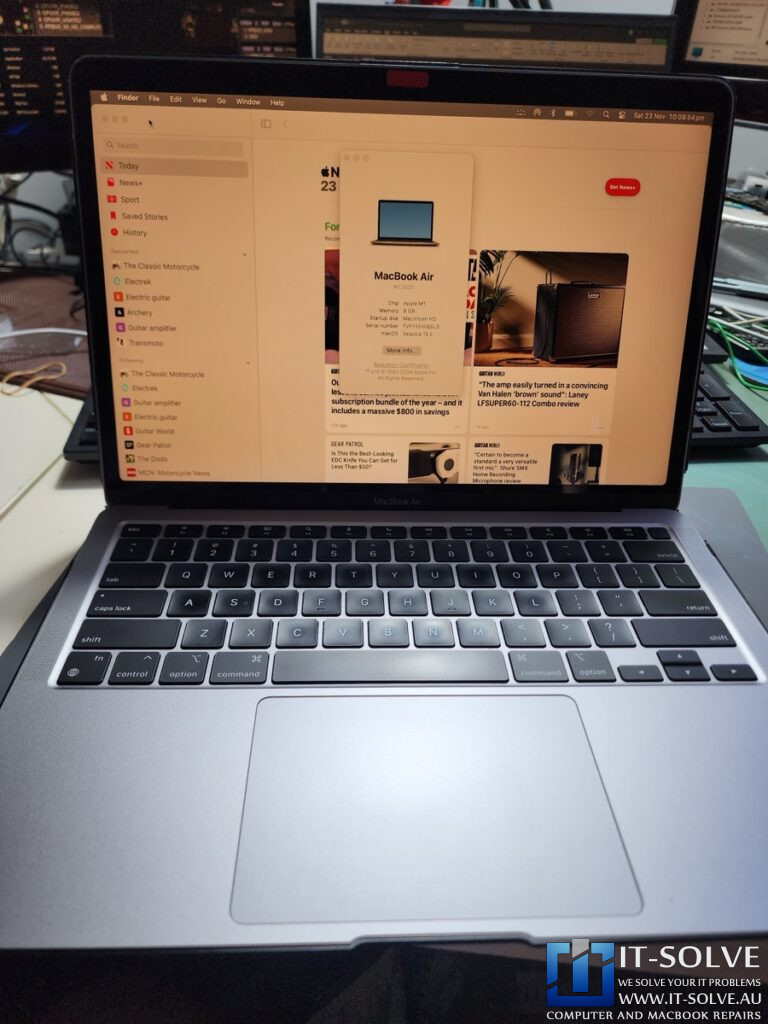

After we replaced the capacitor and reassembled the unit, the device began pulling the correct charging current again. We tested the speakers and confirmed that the audio was playing perfectly. This successful repair shows how one microscopic component can fail an entire premium laptop. Most importantly, the customer’s data remained completely safe throughout the process.
